Cup Pig/Batching Pig

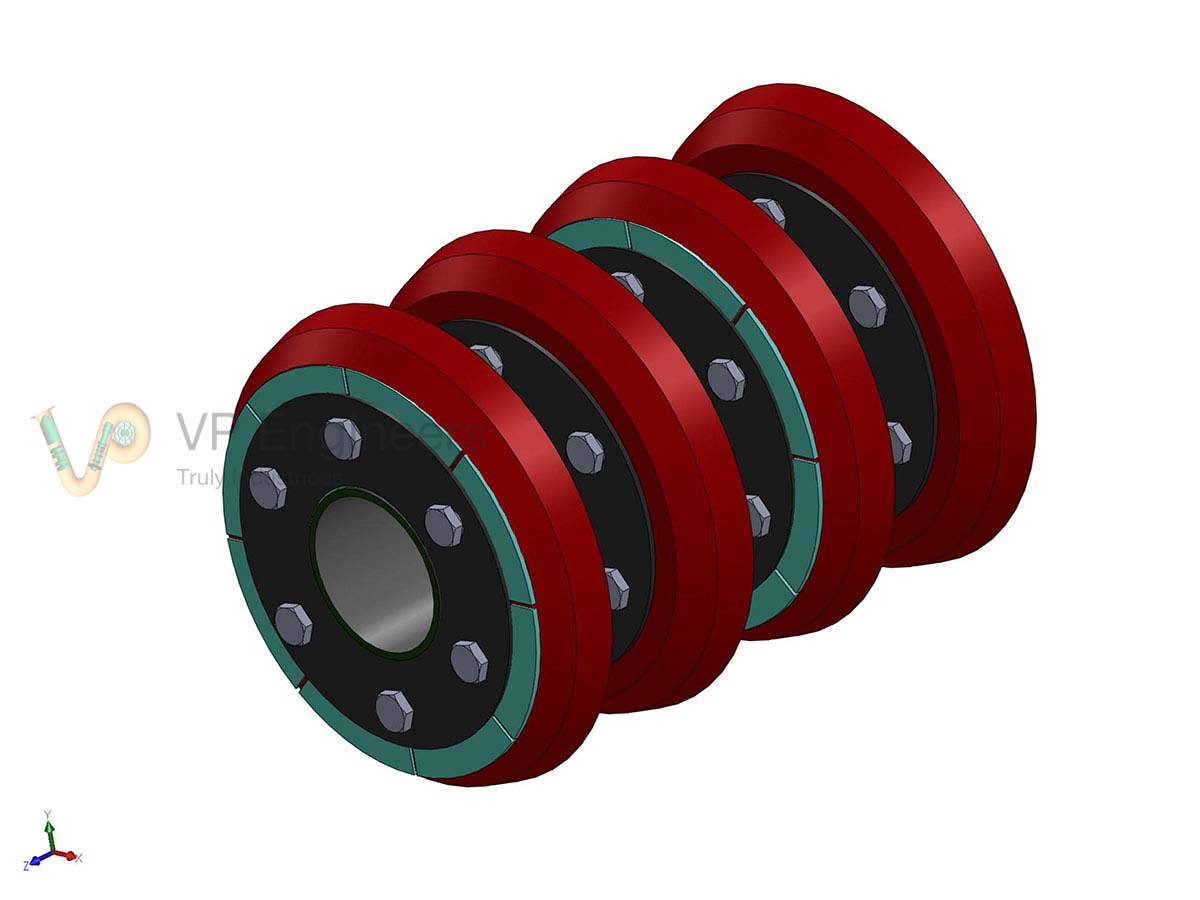

Cup Pig / Batching Pig

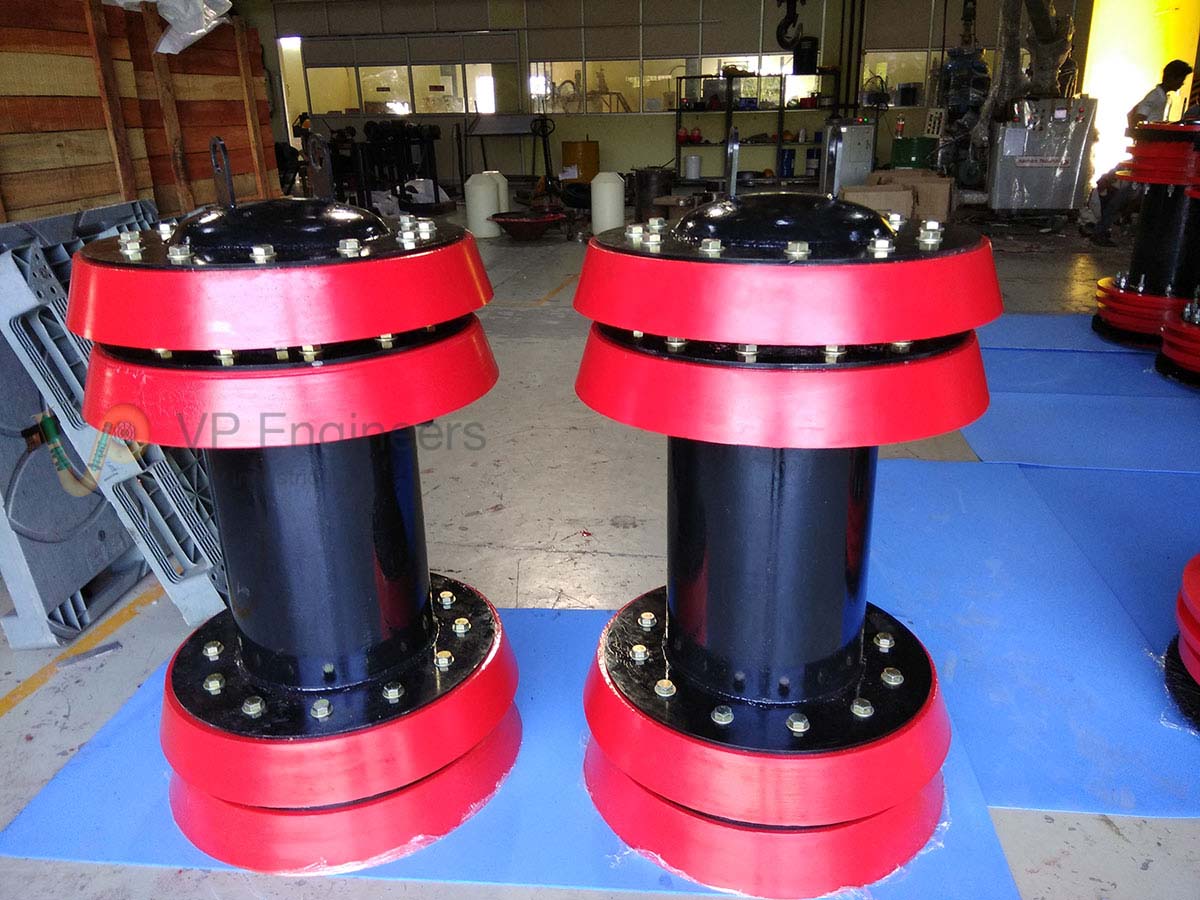

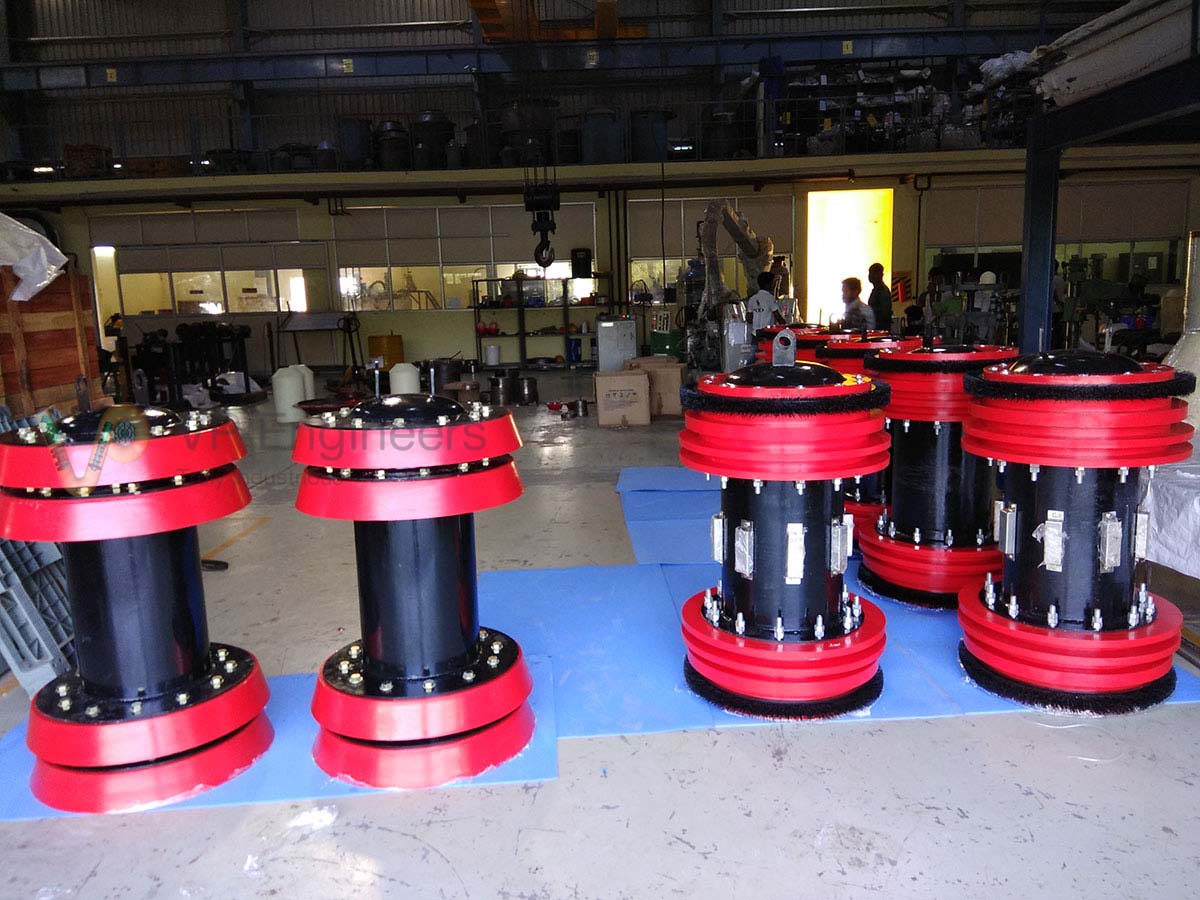

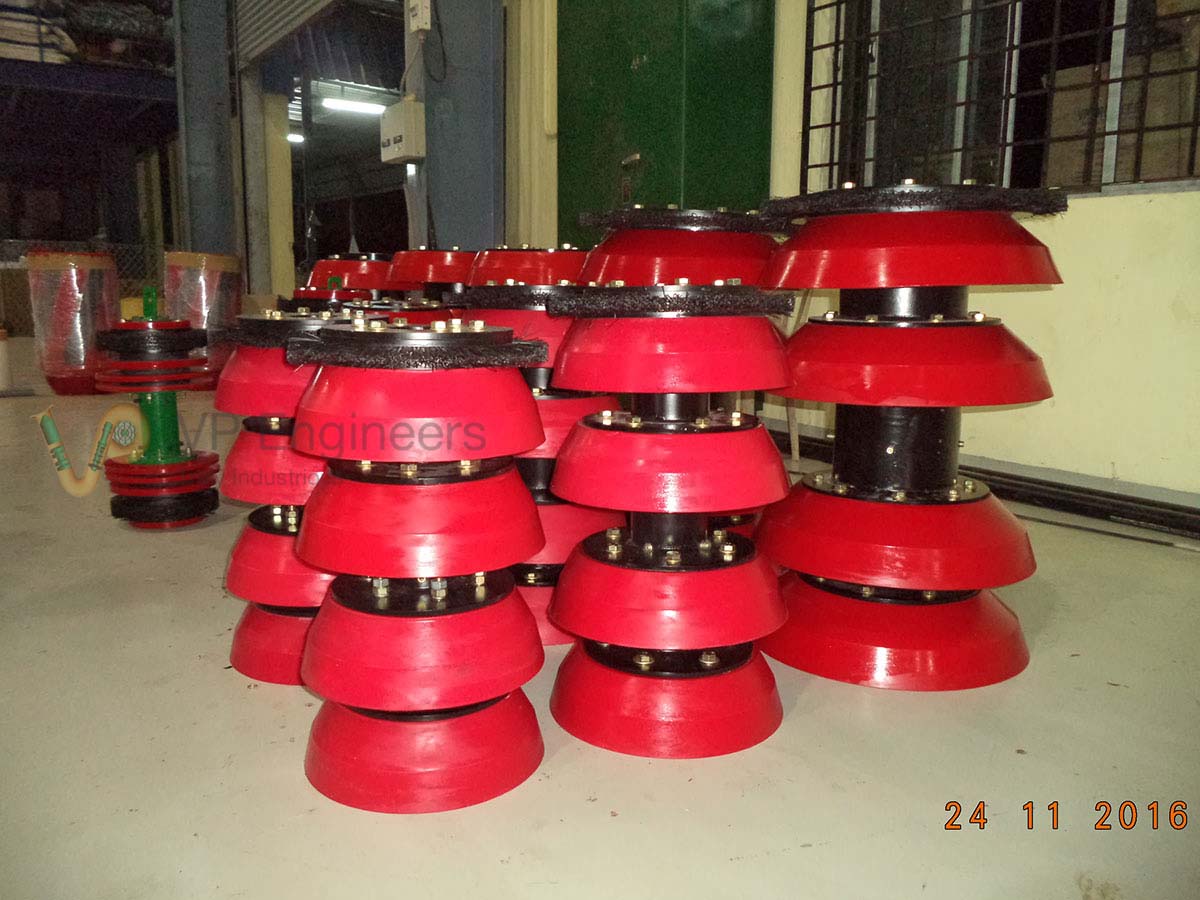

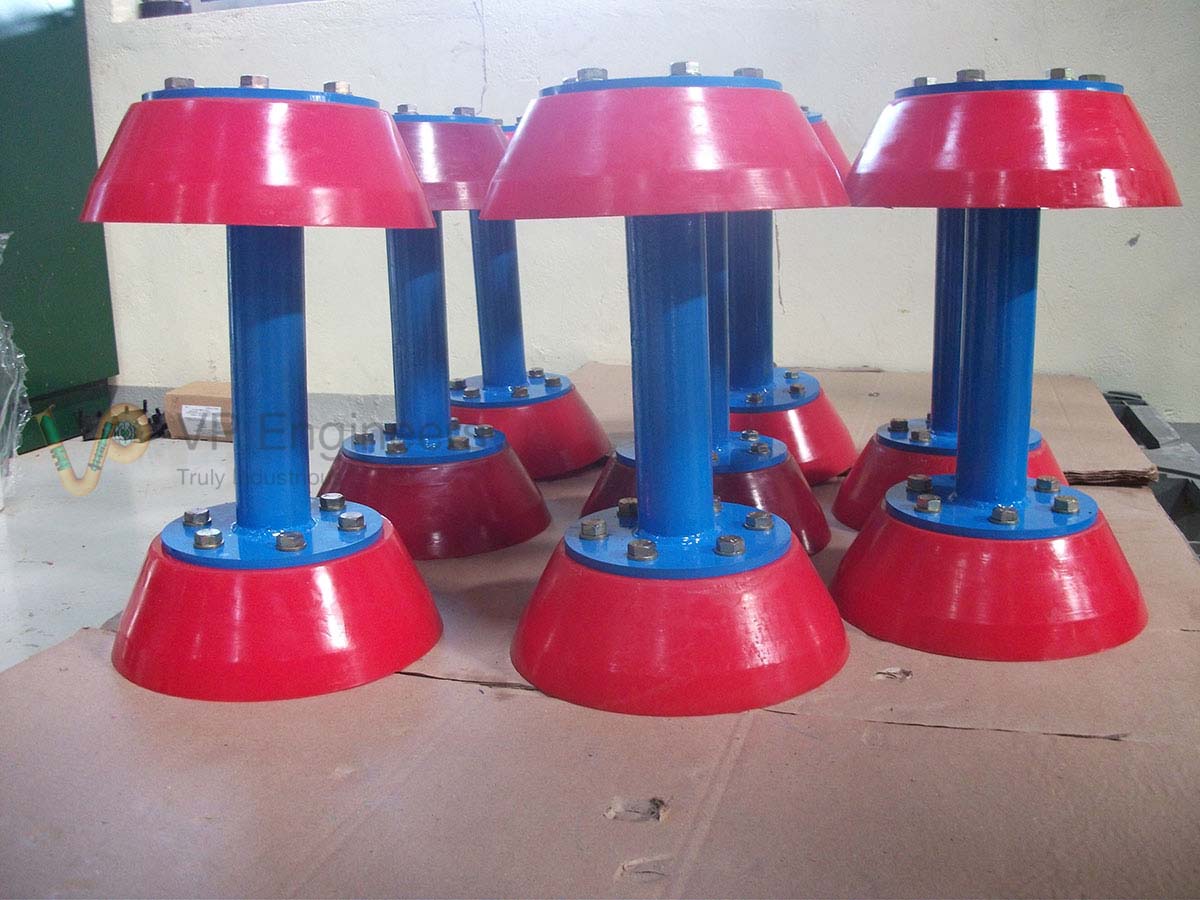

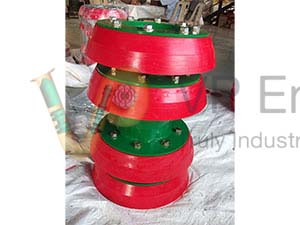

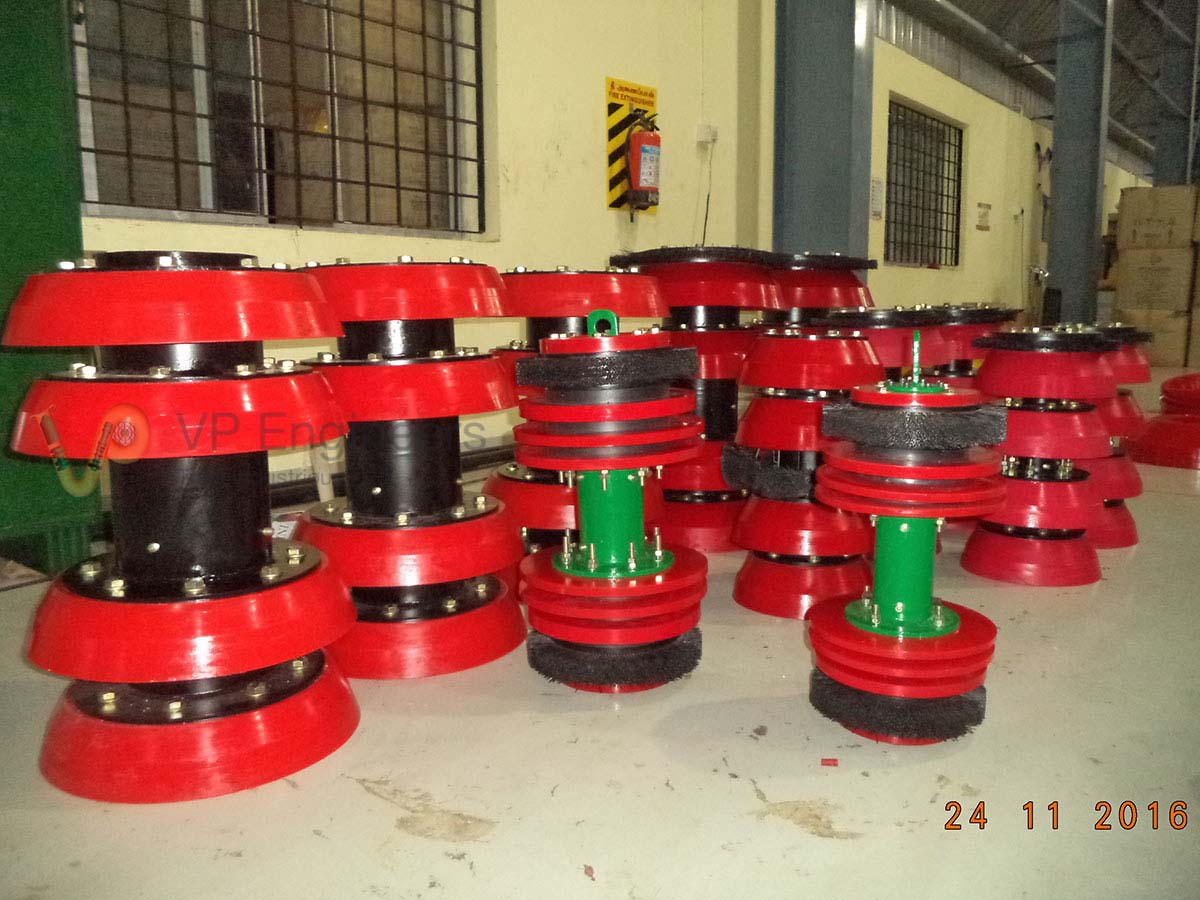

Batching Pig Batch

  • Batching/Cup pigs, also called as unidirectional pigs are generally made with 2 or 4 cups attached to the steel mandrel. They are mainly used to separate dissimilar fluids such as gasoline, heating oil, etc.
  • These pigs are used for gauging the dimensions of the pipeline before the product is launched in the pipeline.
  • They serve the purpose of light cleaning, line filling, dewatering, batch separation etc.
  • For short distance batching and dewatering applications, rubber cups of neoprene /nitrile rubber are used.
  • We offer batch/cup pigs in sizes ranging from 3” to 72” of different pipe schedule.

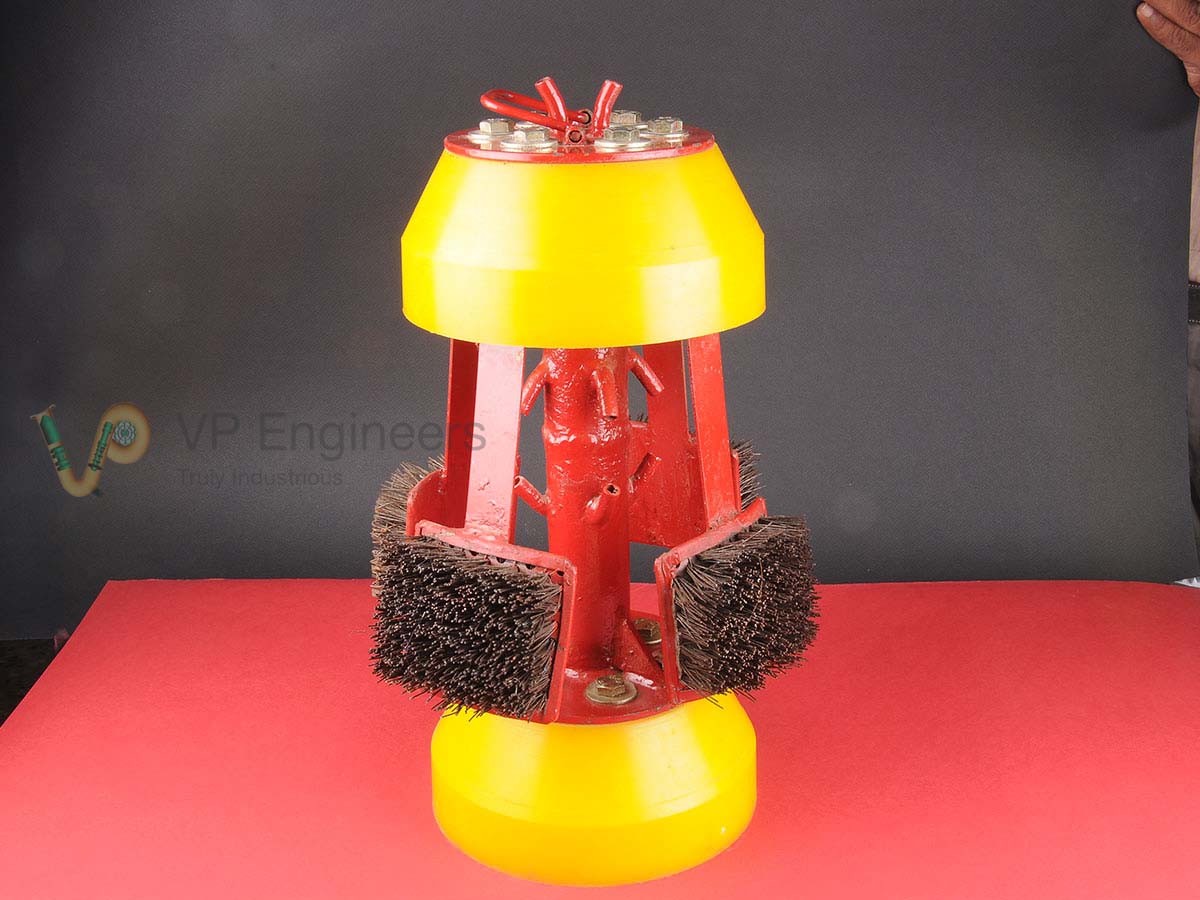

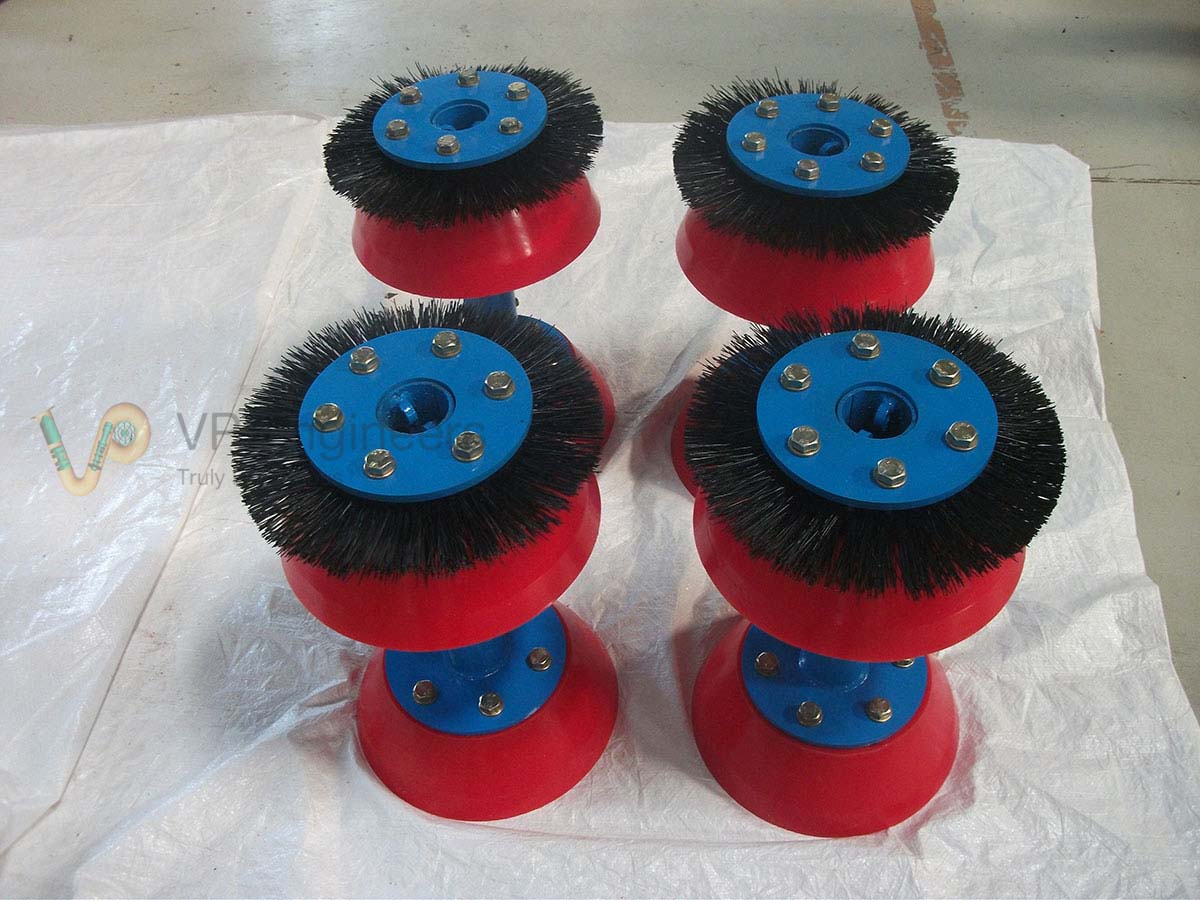

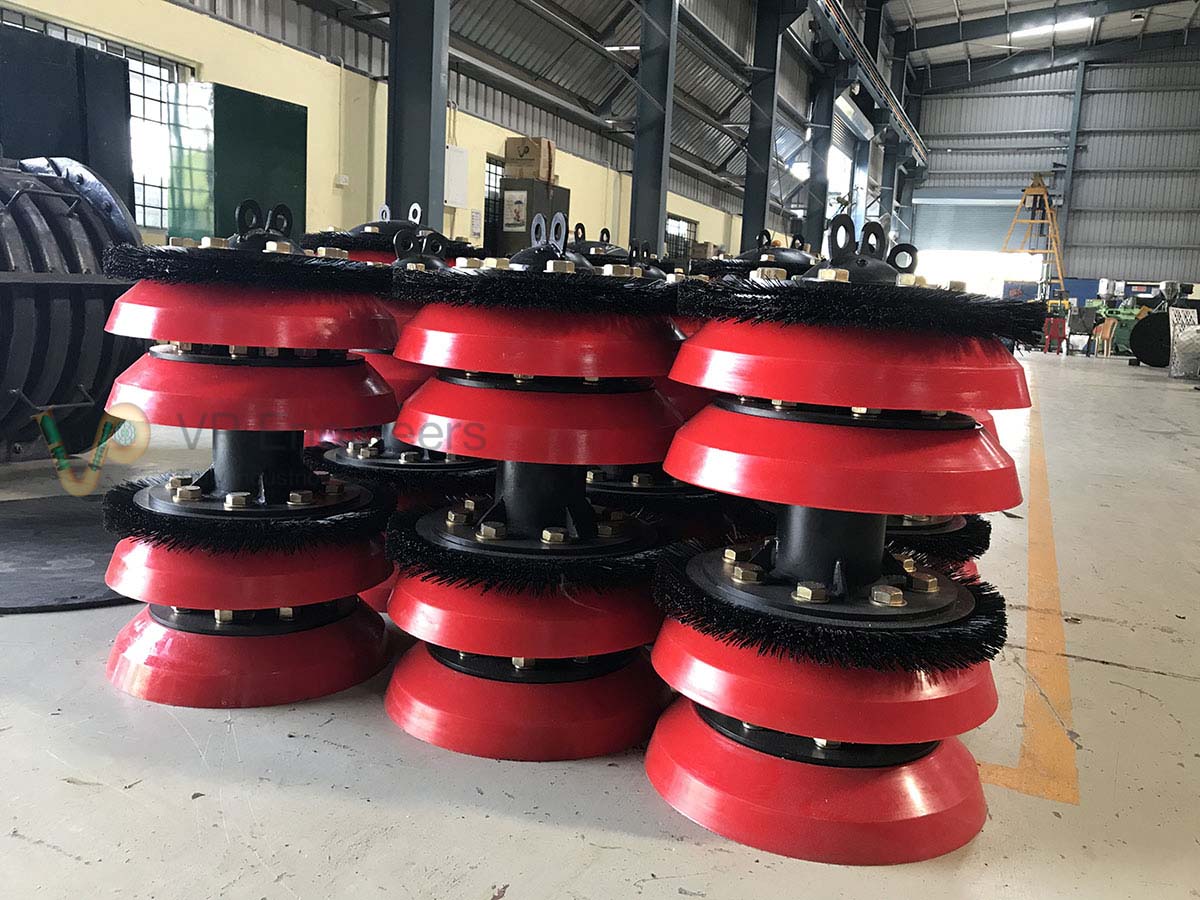

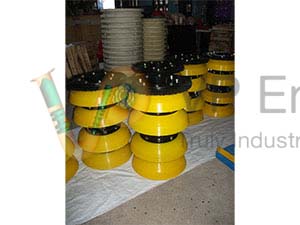

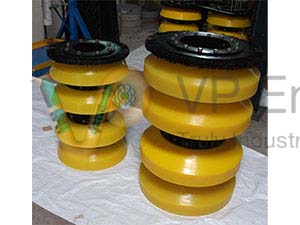

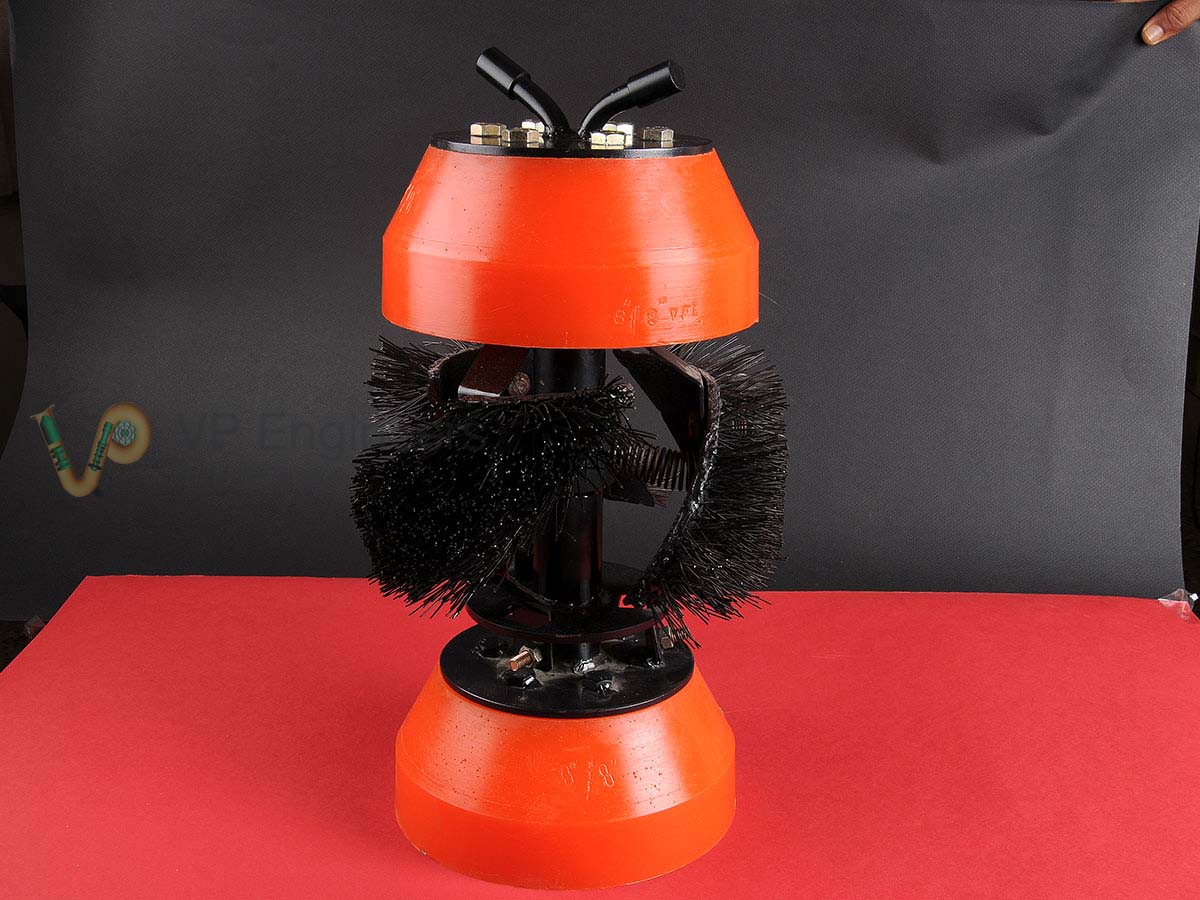

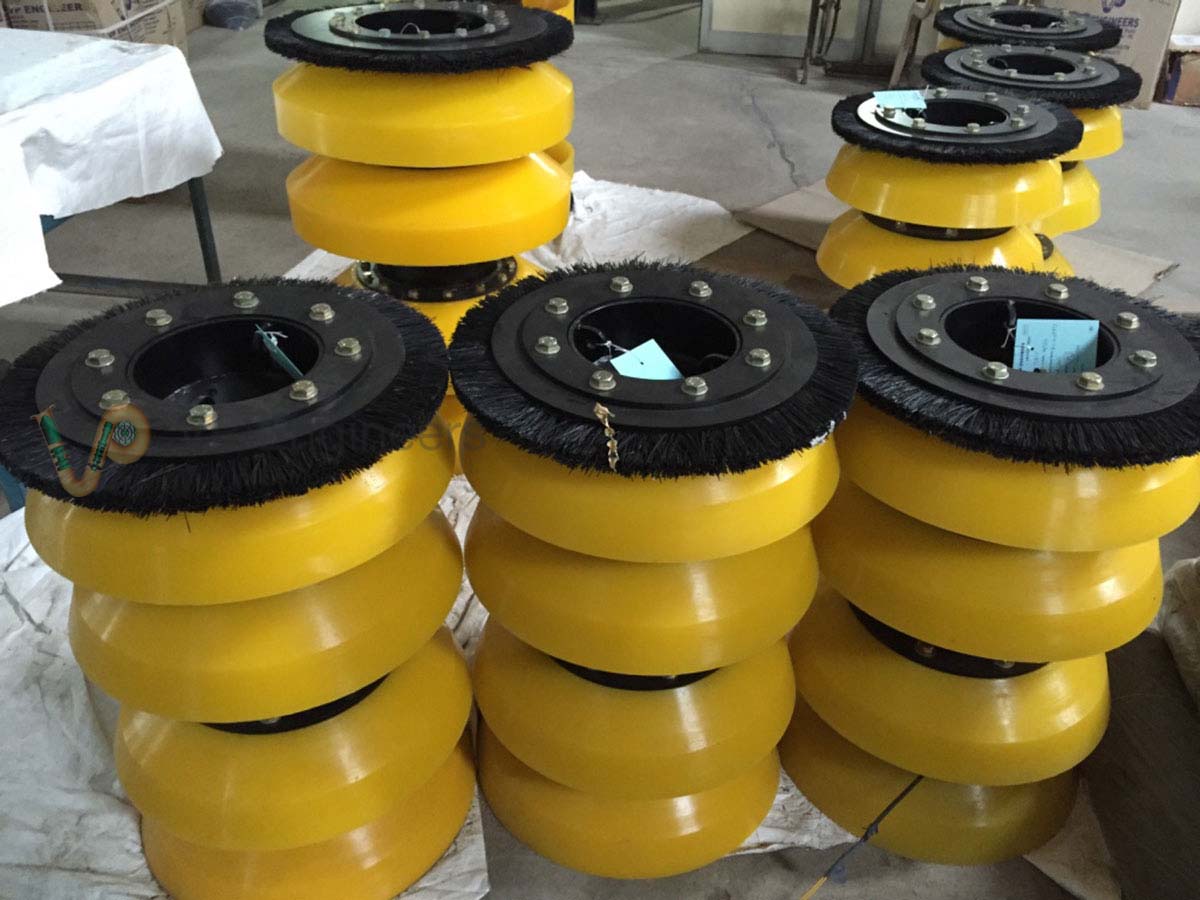

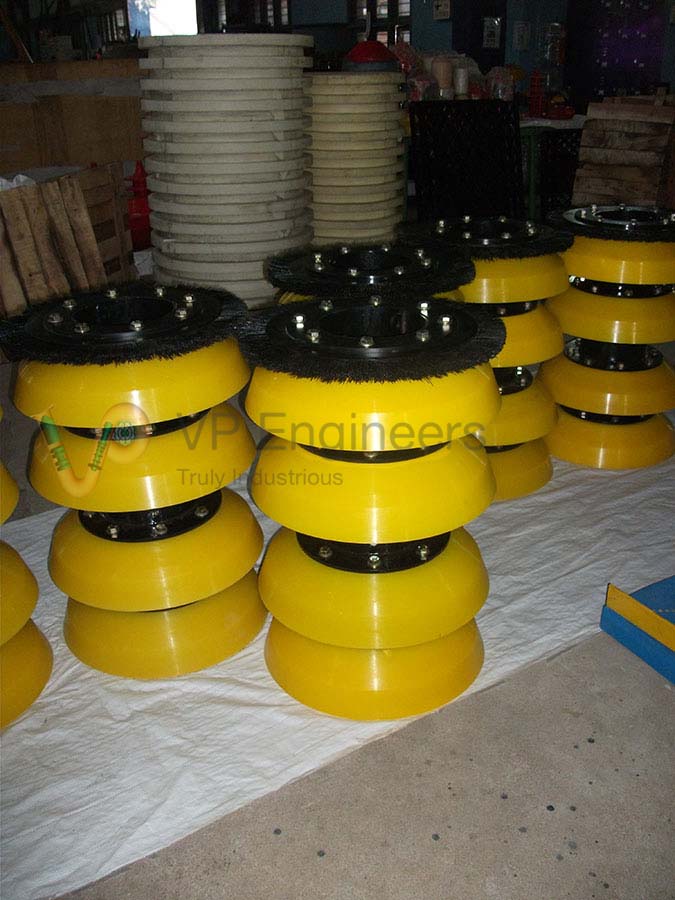

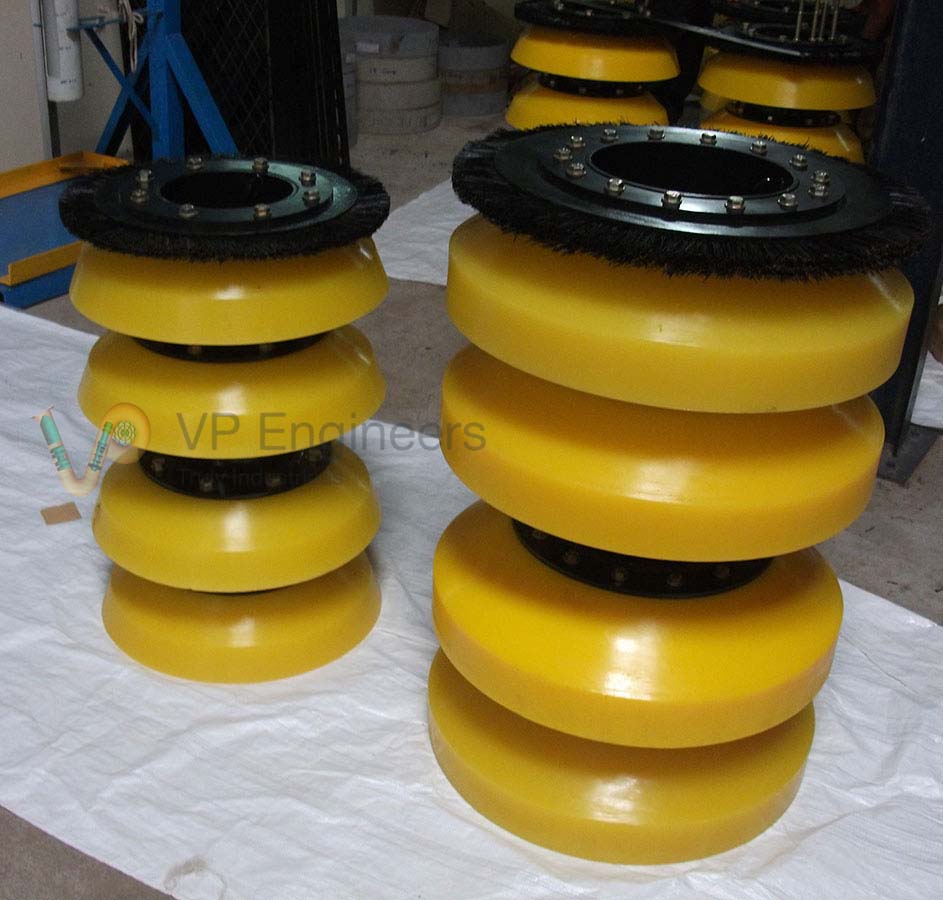

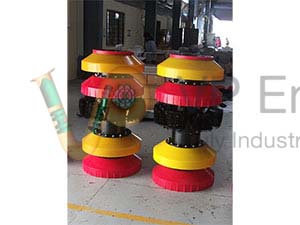

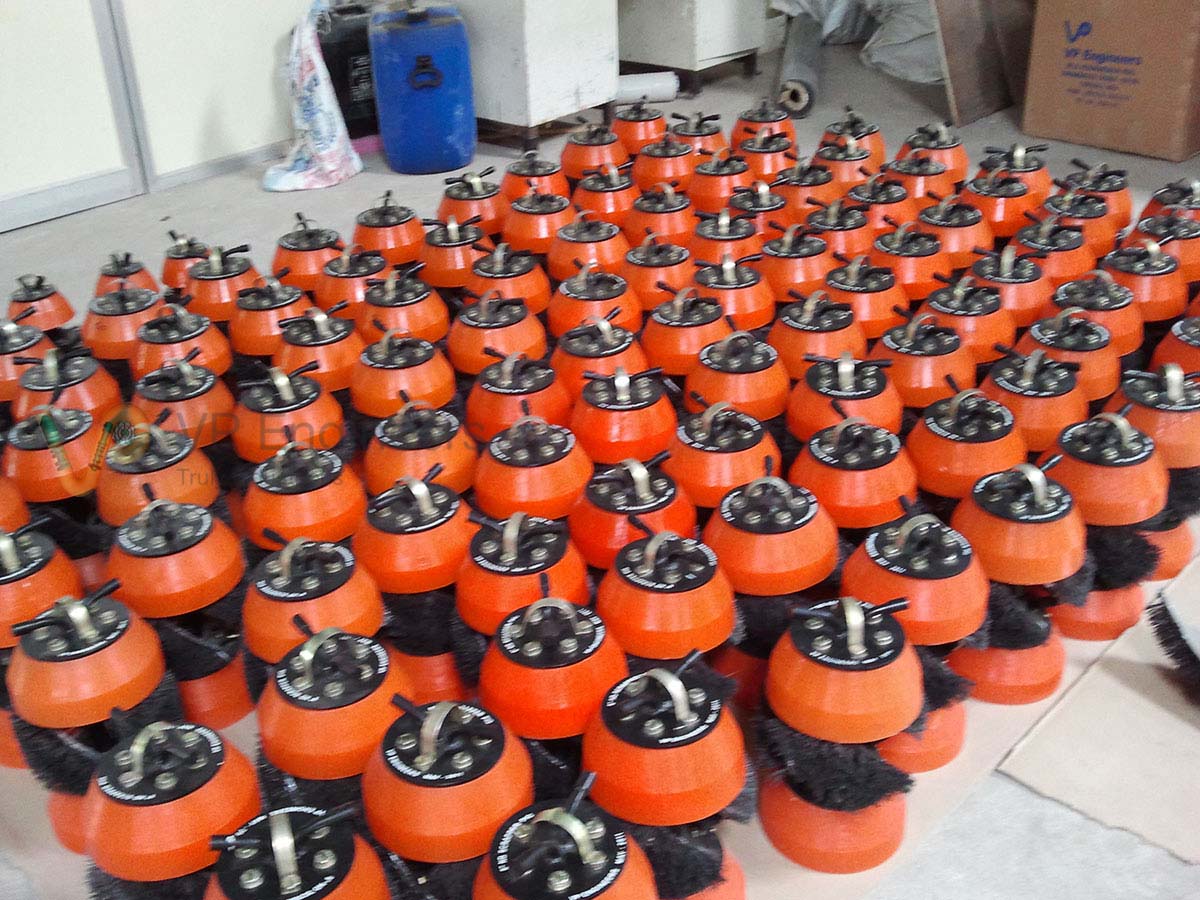

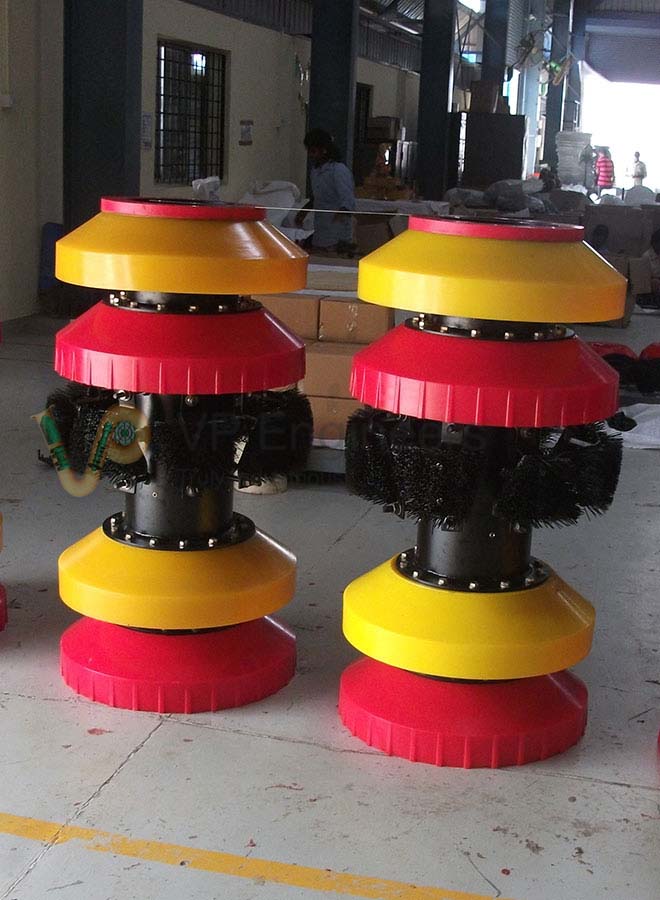

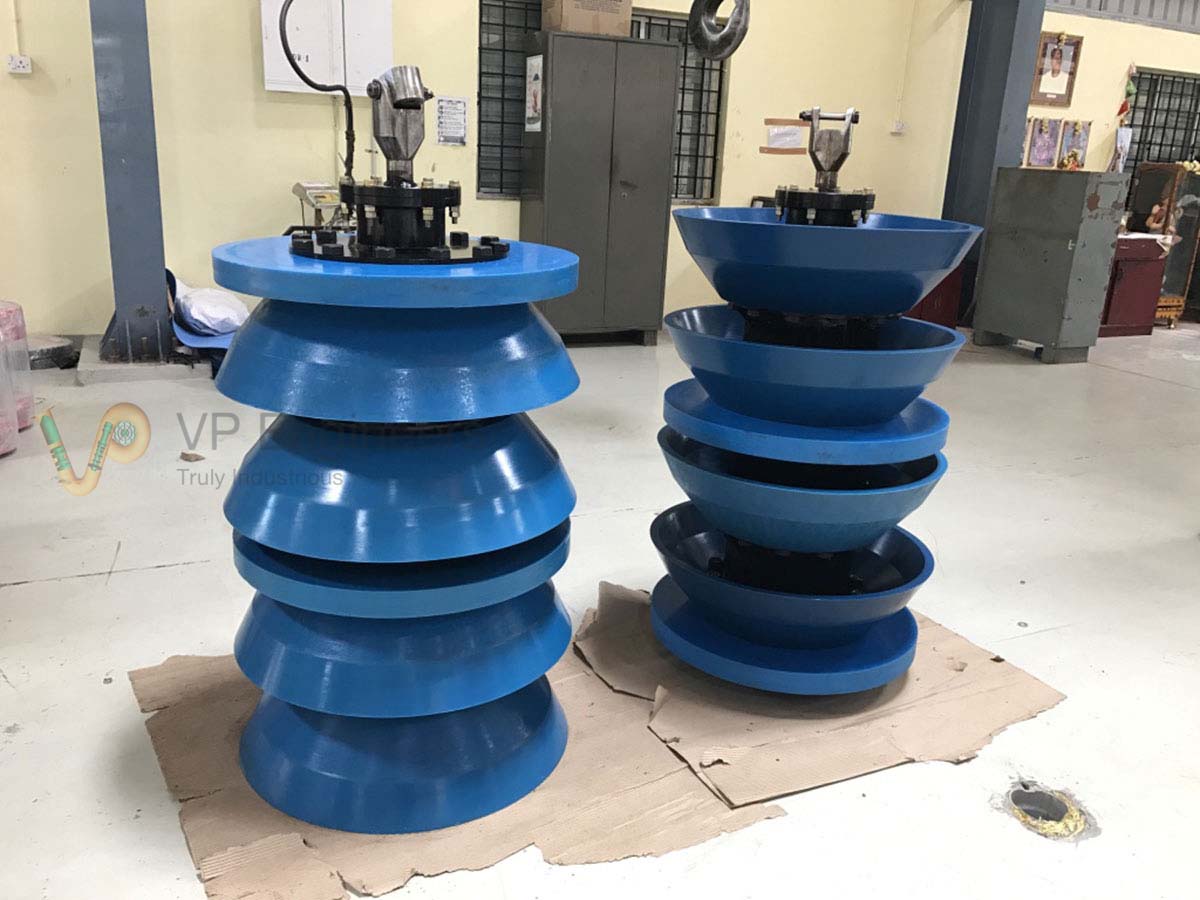

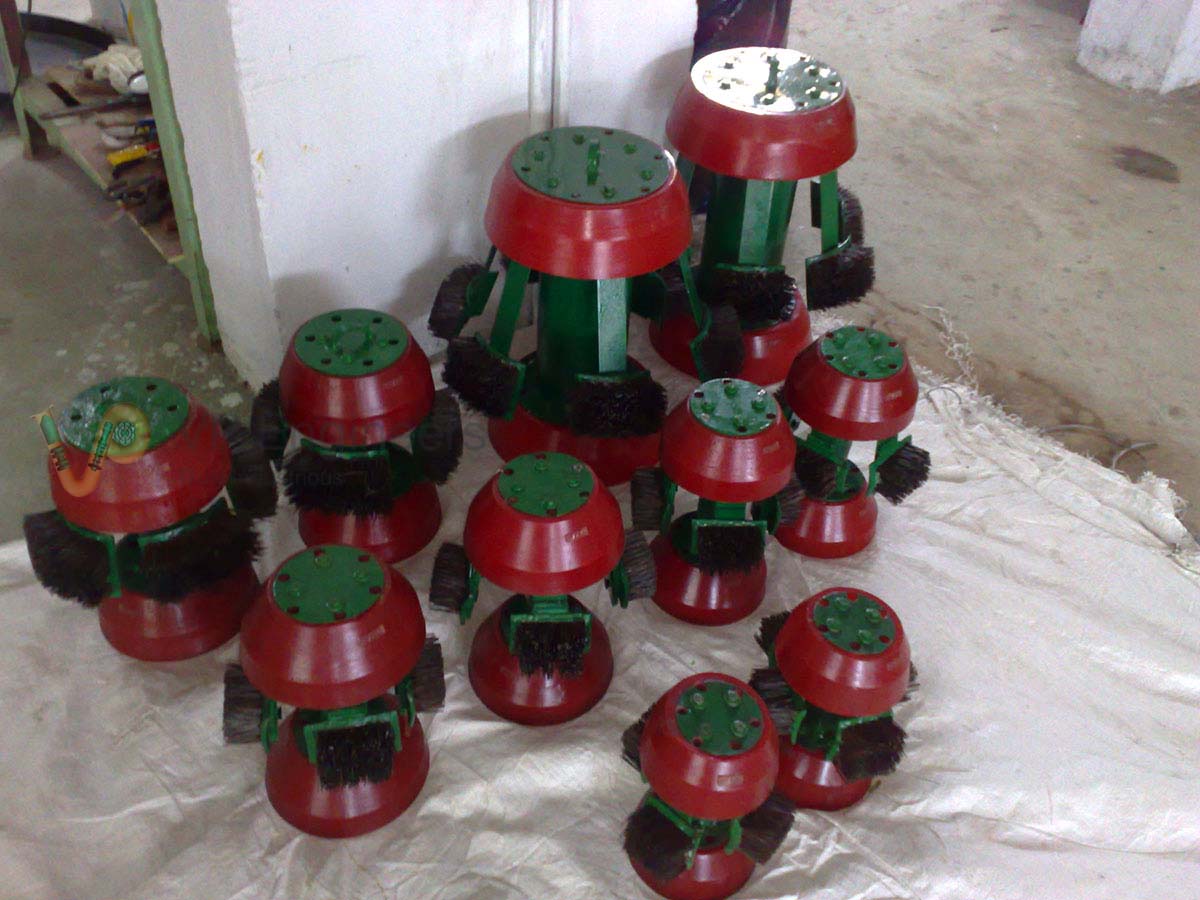

Cup Pigs Batch Brush

  • Cup pigs with brushes are used for cleaning pipelines in mining & construction industries.
  • These pigs are used to clean pipelines with heavier surface contamination. They have a very tight sealing capacity compared to normal pigs.
  • The brushes used are either metal or nylon as the duty demands.

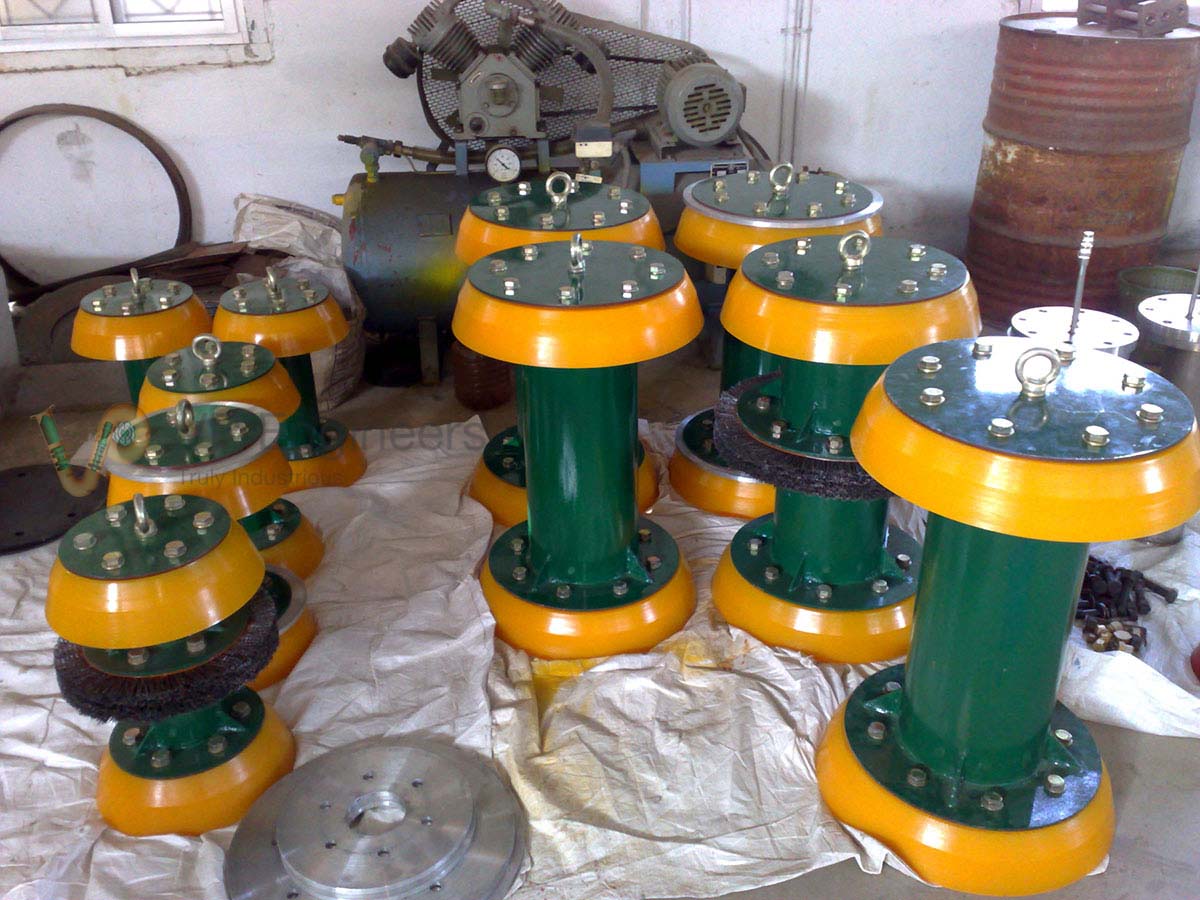

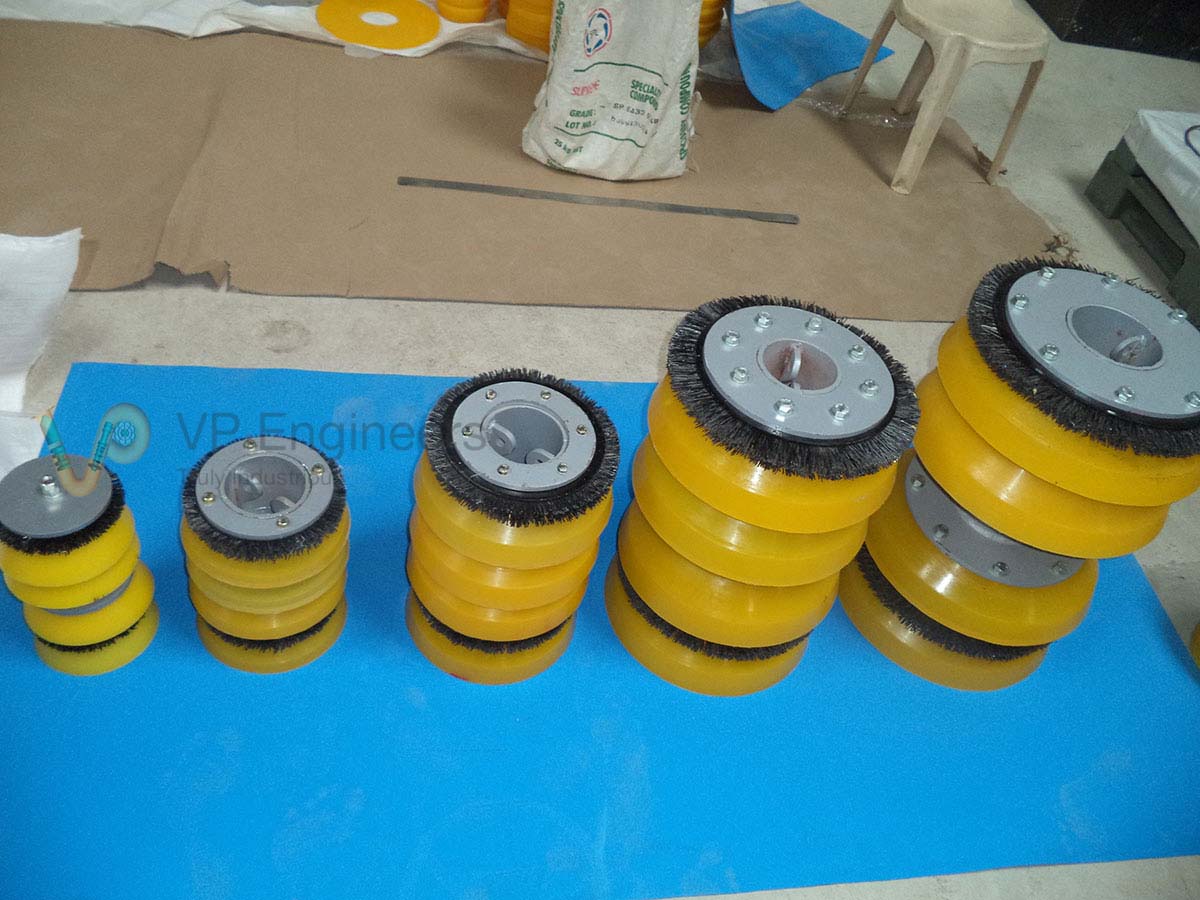

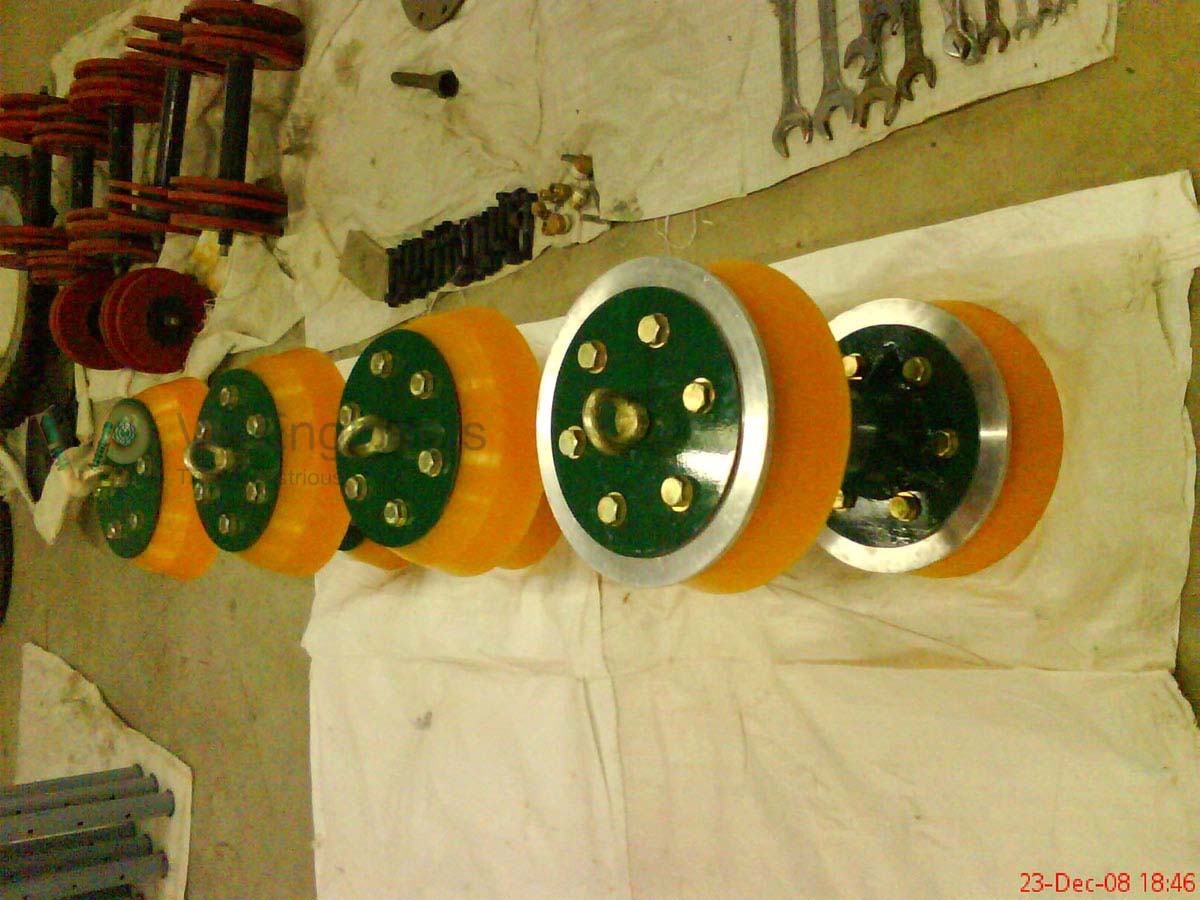

Cup Pigs Gauge Pigs

  • The purpose of these pigs is to check the pipelines inner surface for any damage (dent or bend).
  • They it also help decide ensures whether full geometrical survey is necessary – a sort of GO or NO-GO gauge.

Cup Magnetic Pigs

  • A magnetic pig usually forms part of the cleaning sequence. This is to remove ferrous debris which would otherwise contaminate the oil or gas that flows.

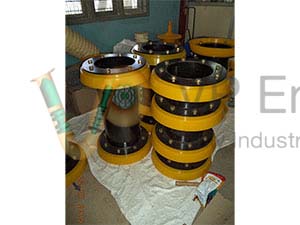

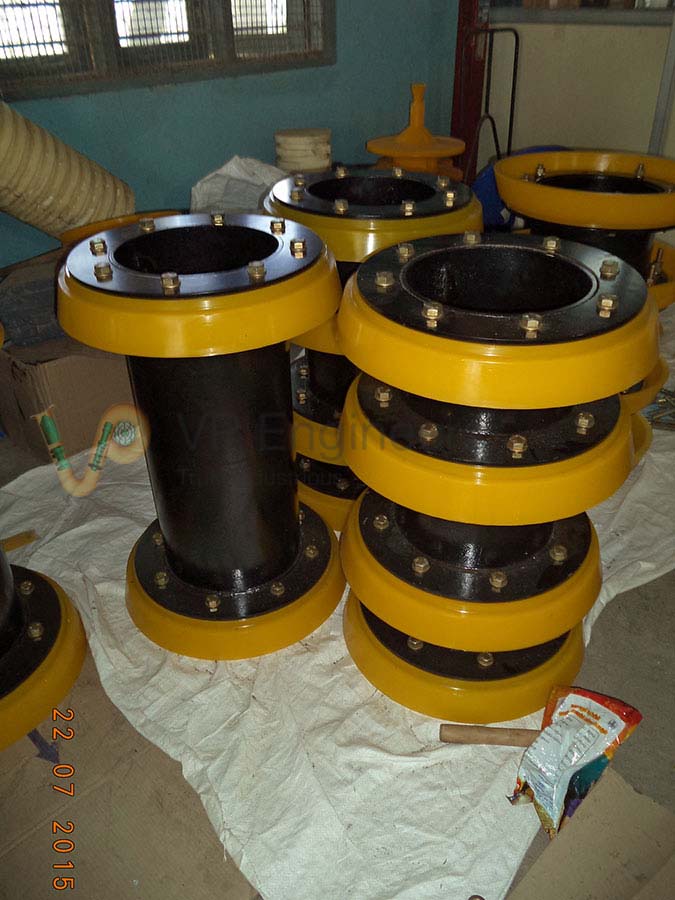

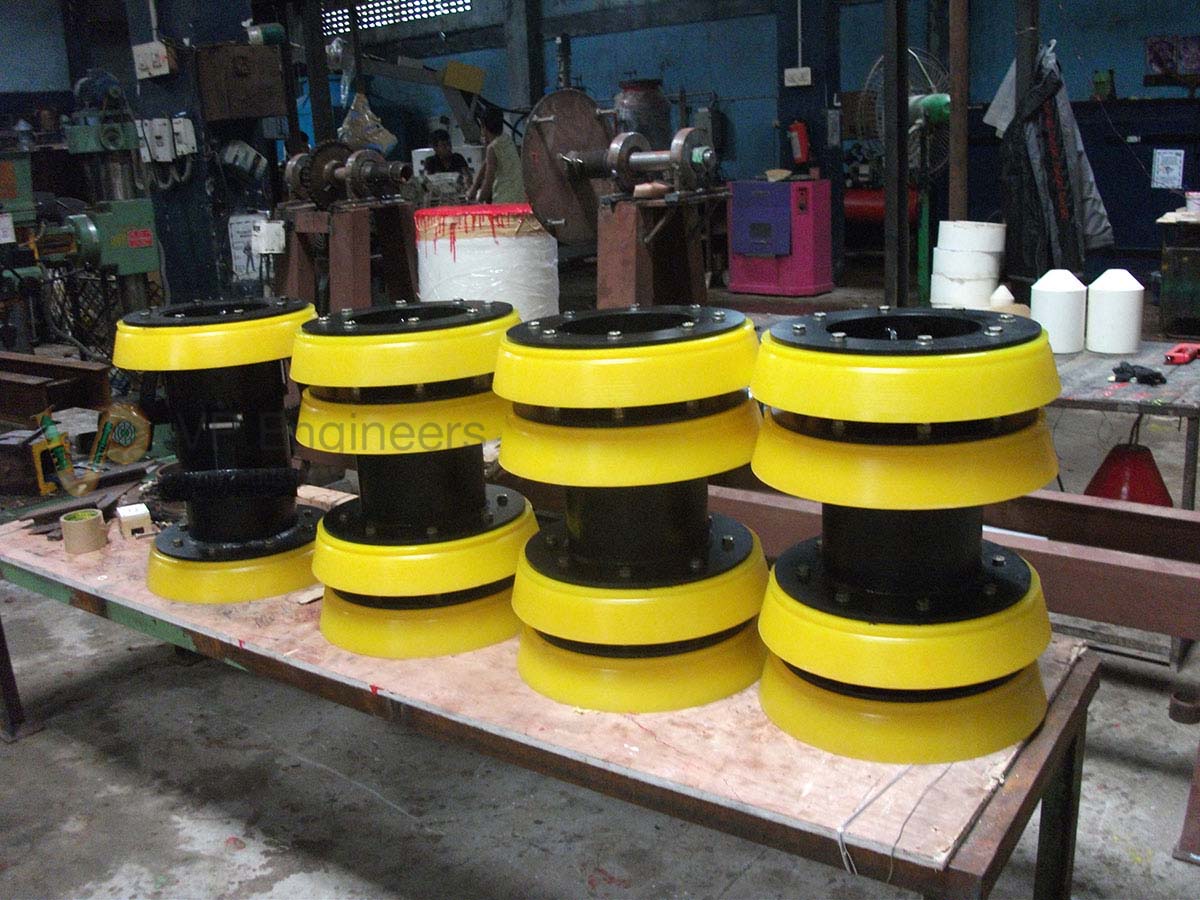

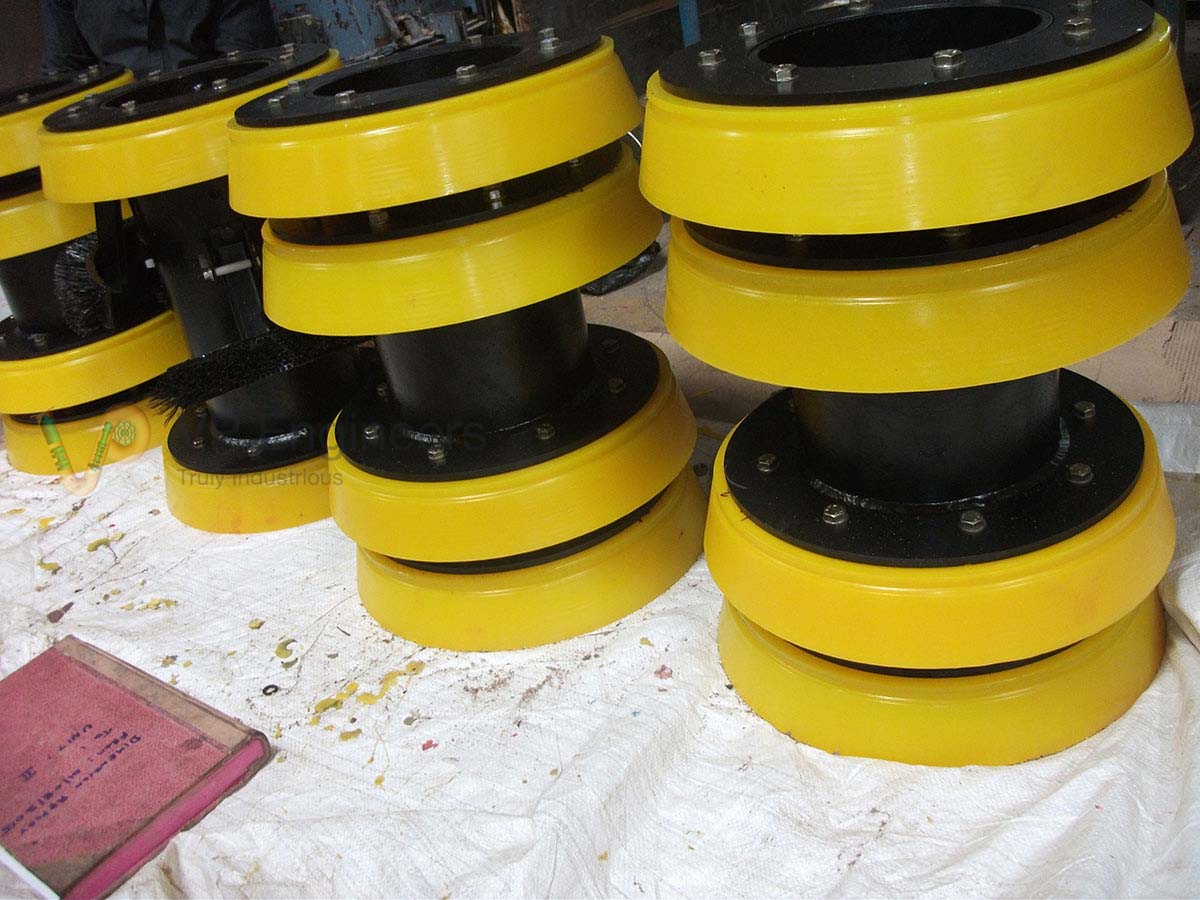

Scrapper

  • The cleaning pig acts as a SCRAPPER & this is why it is also called as a SCRAPPER PIG. It scraps thoroughly throughout its journey inside the pipeline removing mill scales, debris, rust, small stones, welding electrodes, etc. from the pipeline
  • Scrapper cup promotes longer cup life, while the pressure of the product keeps the cutting edge against the pipe wall and ensures an optimum seal.
  • We offer scrapper pigs in sizes ranging from 3” to 50” of different pipe schedule.

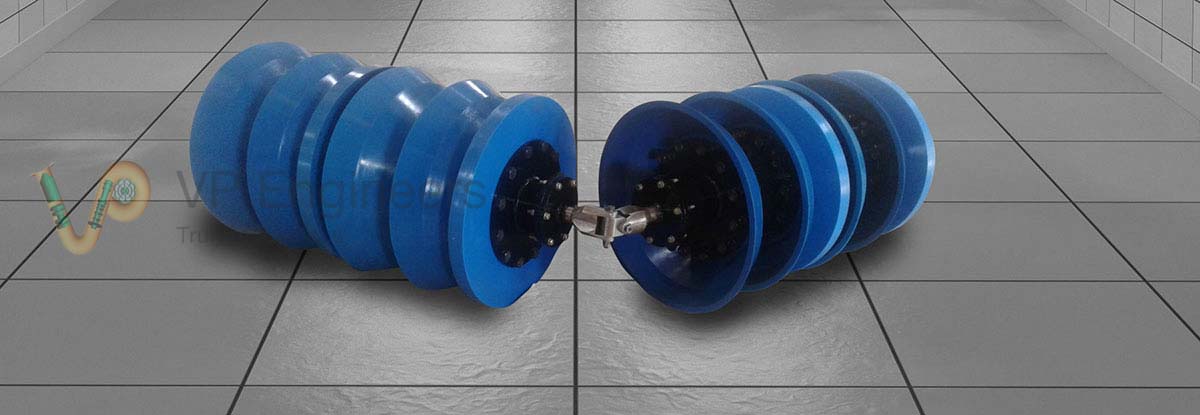

Batching Dual Module Pig

Batching Dual Module Pig
