Pipe End Protectors

Pipe End Protectors

Pipe End

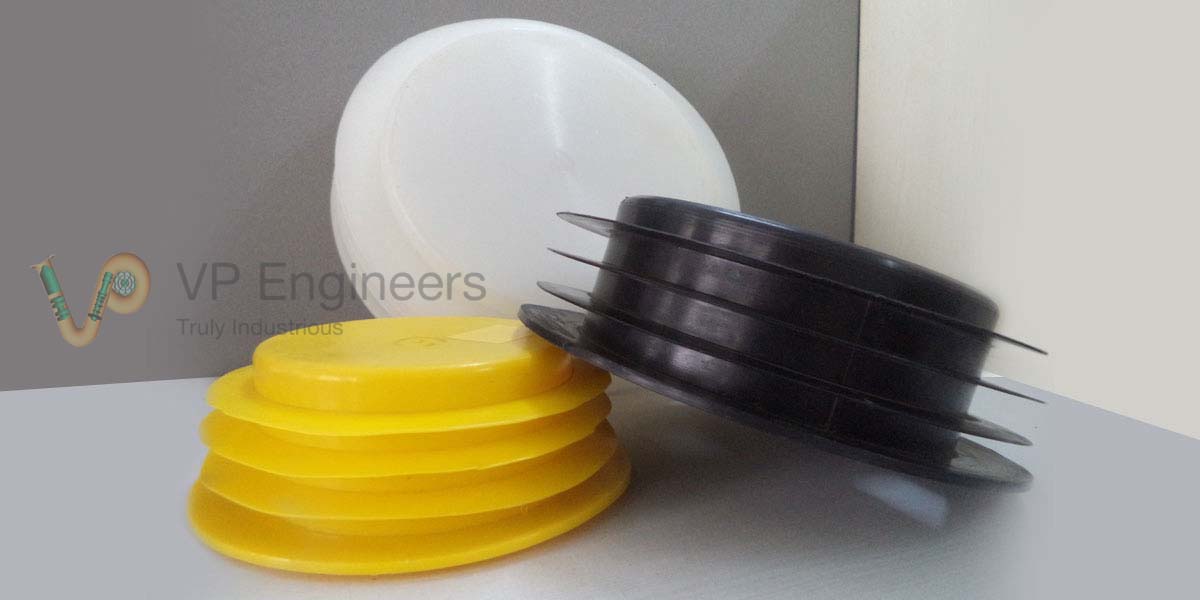

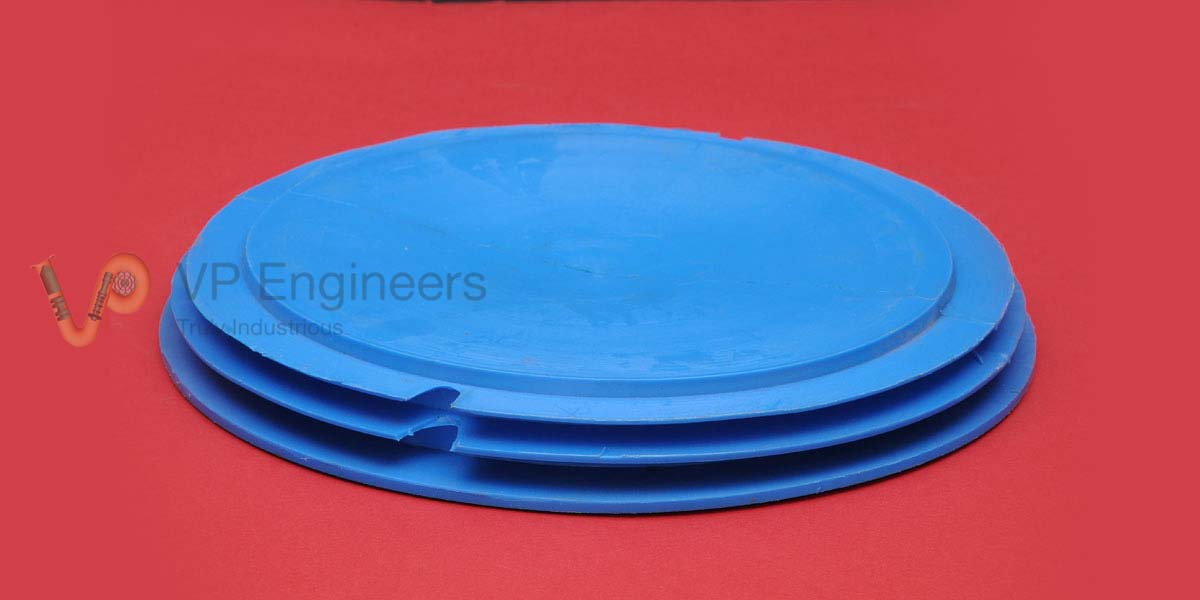

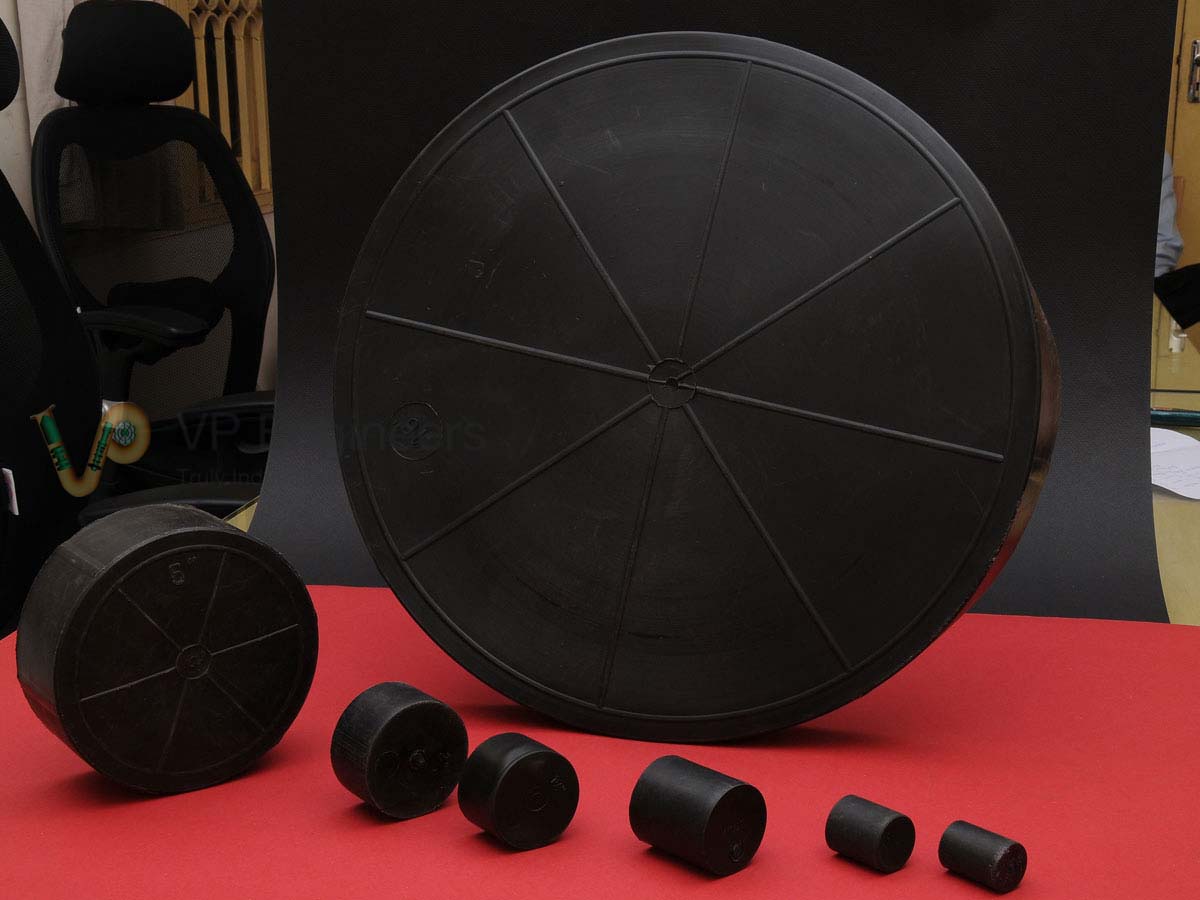

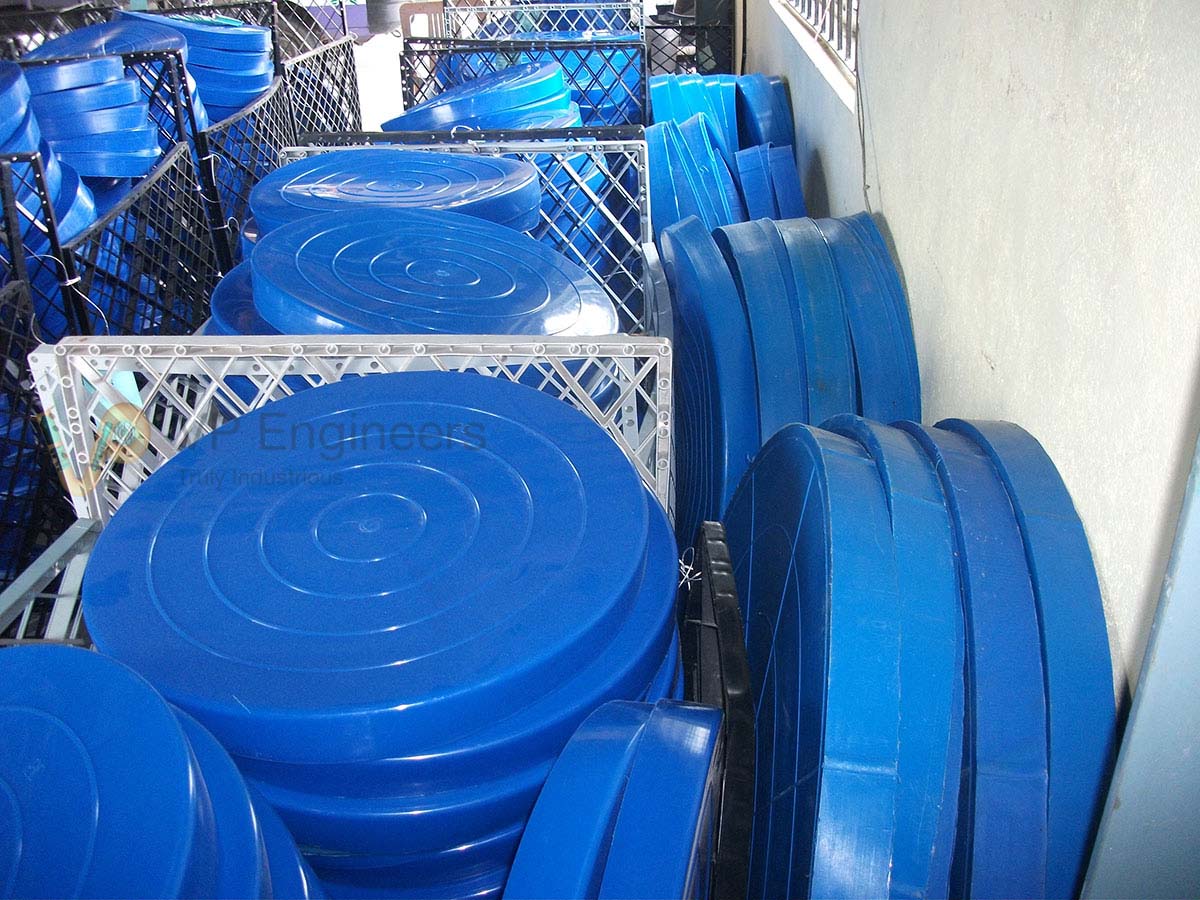

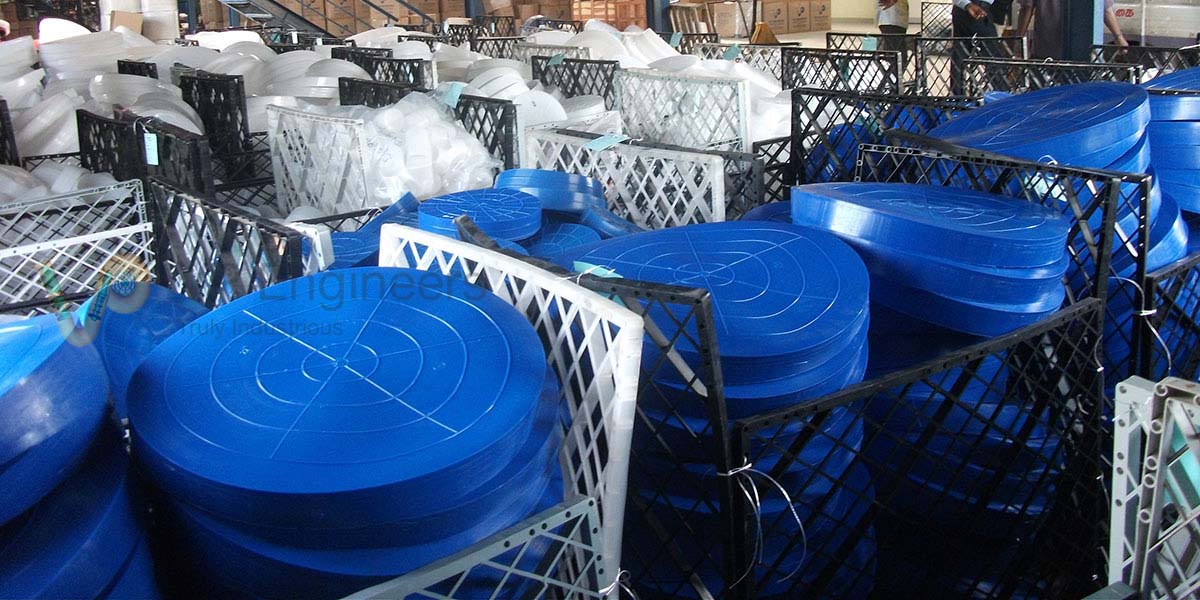

OD Fitting Caps

Generally made out of LDPE, they fit on the OD of the pipe. They are available in standard sizes to suit the pipe standard ANSI 36.10 (1/2" to 100"). Bigger sizes can also be made to order. Caps are used for preventing ingress of foreign particles during maintenance, transportation or in store. Available in MOC - LDPE, vinyl, aluminium, FRP, rubber, plywood

ID Fitting/Male Caps

They fit on the ID of the pipe and are used for preventing deposition of particles on the ID of the pipe as well as to prevent damage to the edges of the pipe. Available in sizes ½” to 60”. Available in MOC – LDPE, vinyl, FRP, rubber and aluminium.

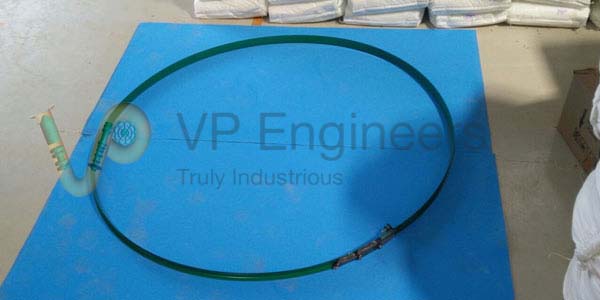

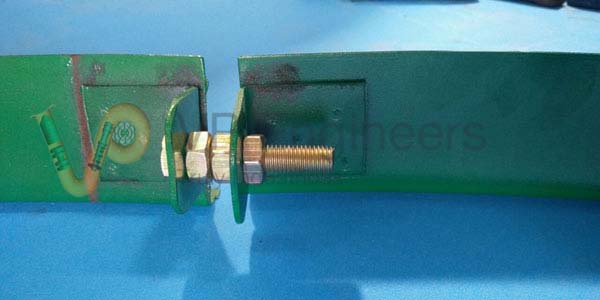

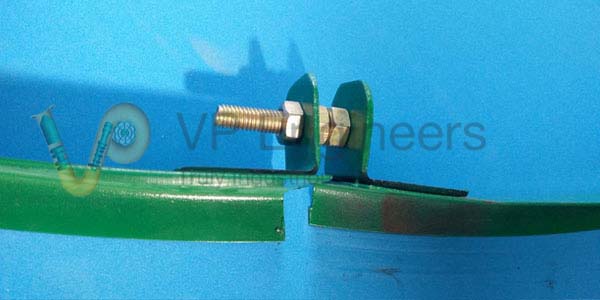

BEVEL END PROTECTOR

Beveling a pipe is one of the most important processes in the piping industry. It will make it easier for the end user during their secondary operations like welding & joining.

VP Engineers' bevel protector is used to protect bevels from damage & pipe caps are used to avoid foreign materials ingress. Protector made out of carbon steel (epoxy coated)/stainless steel will be designed to match the pipe’s material of construction.

Manufacturing range differs from 4” to 120” (customized sizes also available) - we make sure protectors are user friendly and easy to fix/remove. We having a huge production capacity 500,000 a month.

We offer multiple designs like clamping type/interlocking type/Fastening type – all are reusable and long-lasting. Our products are designed to match international quality standards and we follow ASTM, API and equivalent design codes.
