Filter Nozzles

Filter Nozzles

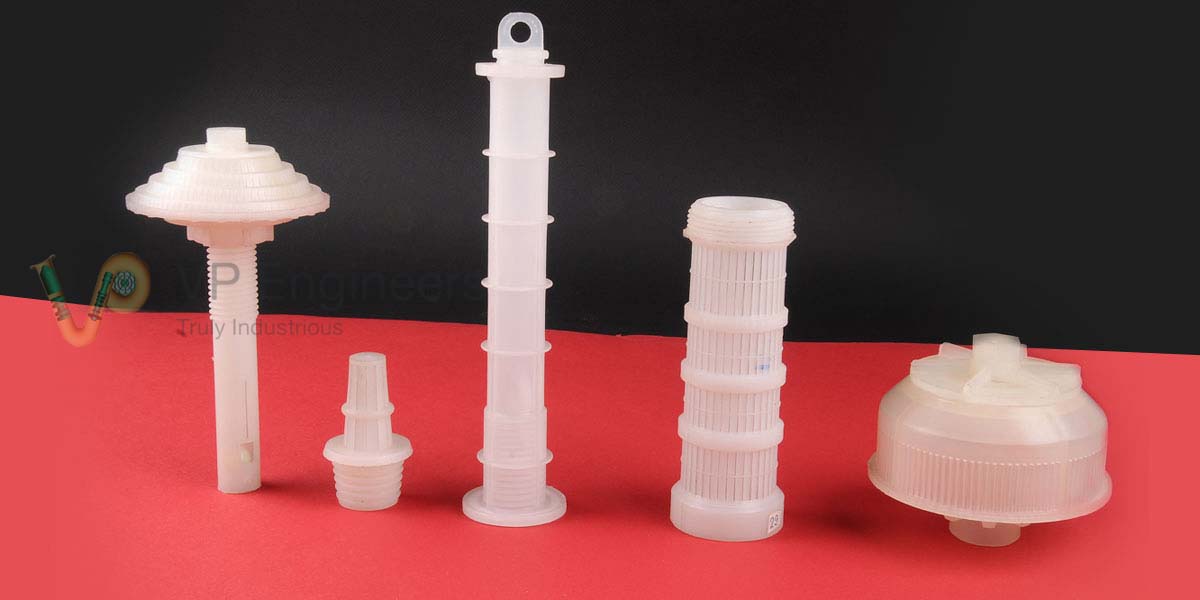

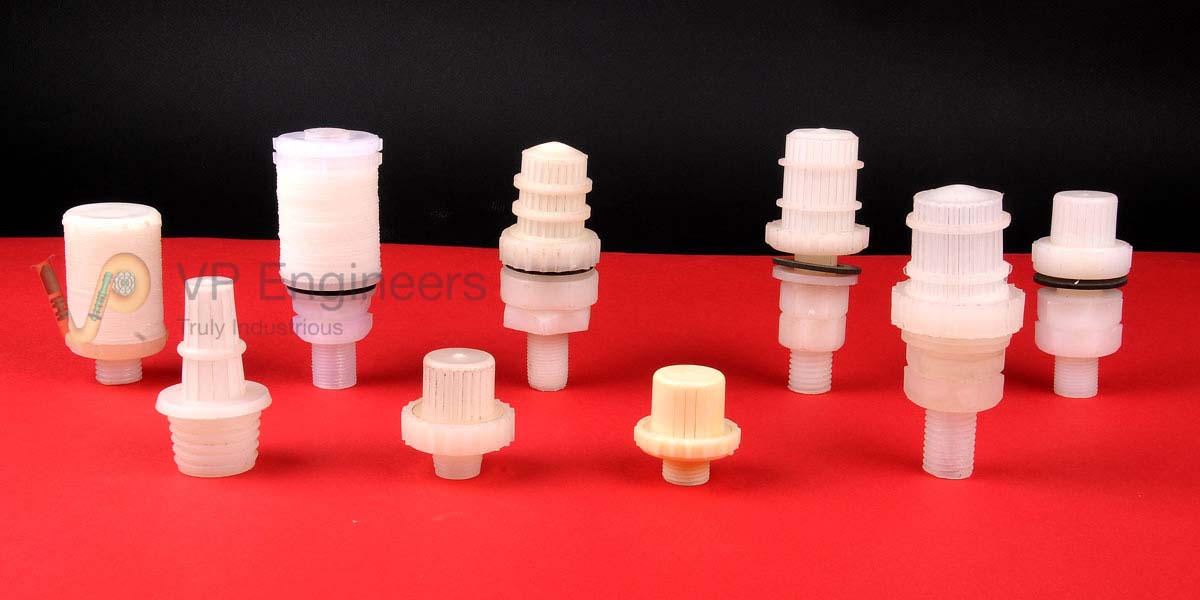

VPE offers filter nozzle in plastic & metal

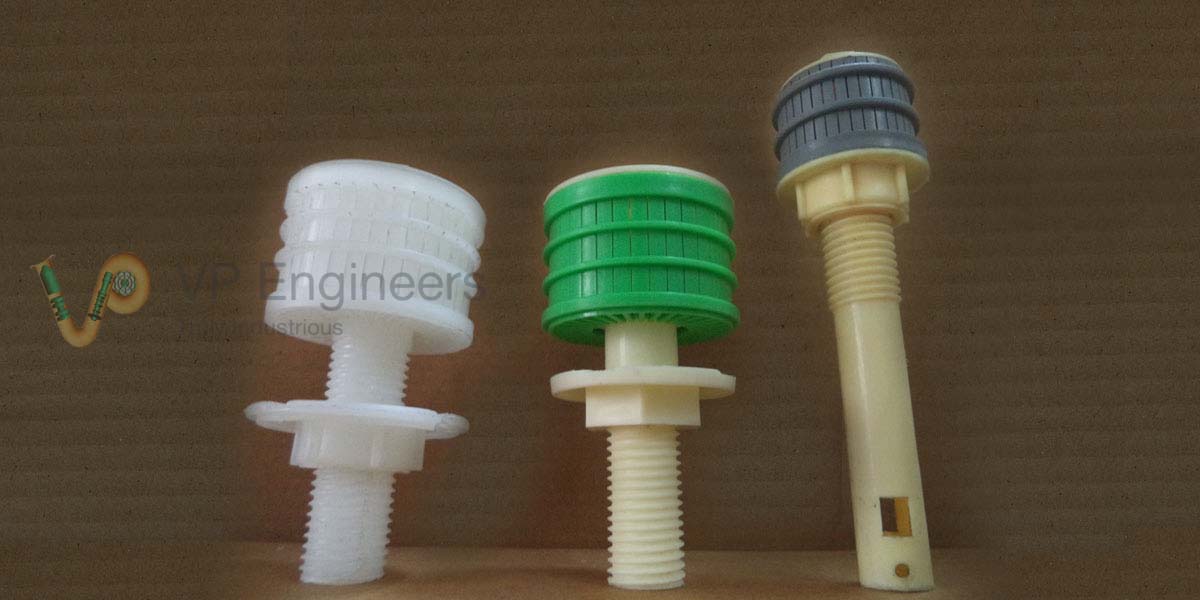

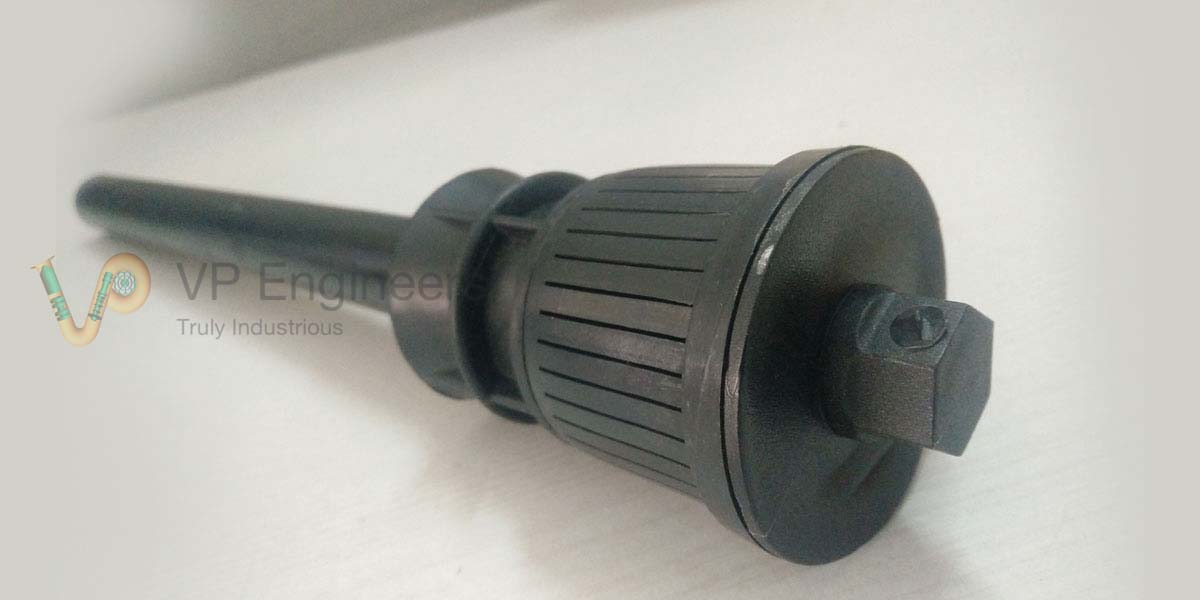

The nozzle has two parts: mainly filter & stem. The filter usually has slots for restricting the resin or gravel from passing through along with the water. The flow through nozzle is decided based on the number of slots, slot width & length. The filter nozzle is generally fitted to the underdrain bed with the threaded stem inserted in to the holes where it will be bolted to the plate with washers & nuts.

Used as:

RESIN TRAPS

Available in slot sizes from 0.2mm to 2mm
Available in PP, PE, ABS & also in SS

Used In:

Water treatment-polishing units
Cat-ion exchanger
Anion exchanger
Mixed bed exchanger
Side stream filters

Plastic

Used in cooling towers, WTP, pressure sand filters, etc.
Manufactured out of various types and grades of plastics.
Range with various orifices, slot sizes, thread fittings and spread flow.
They can be manufactured to customised requirements.

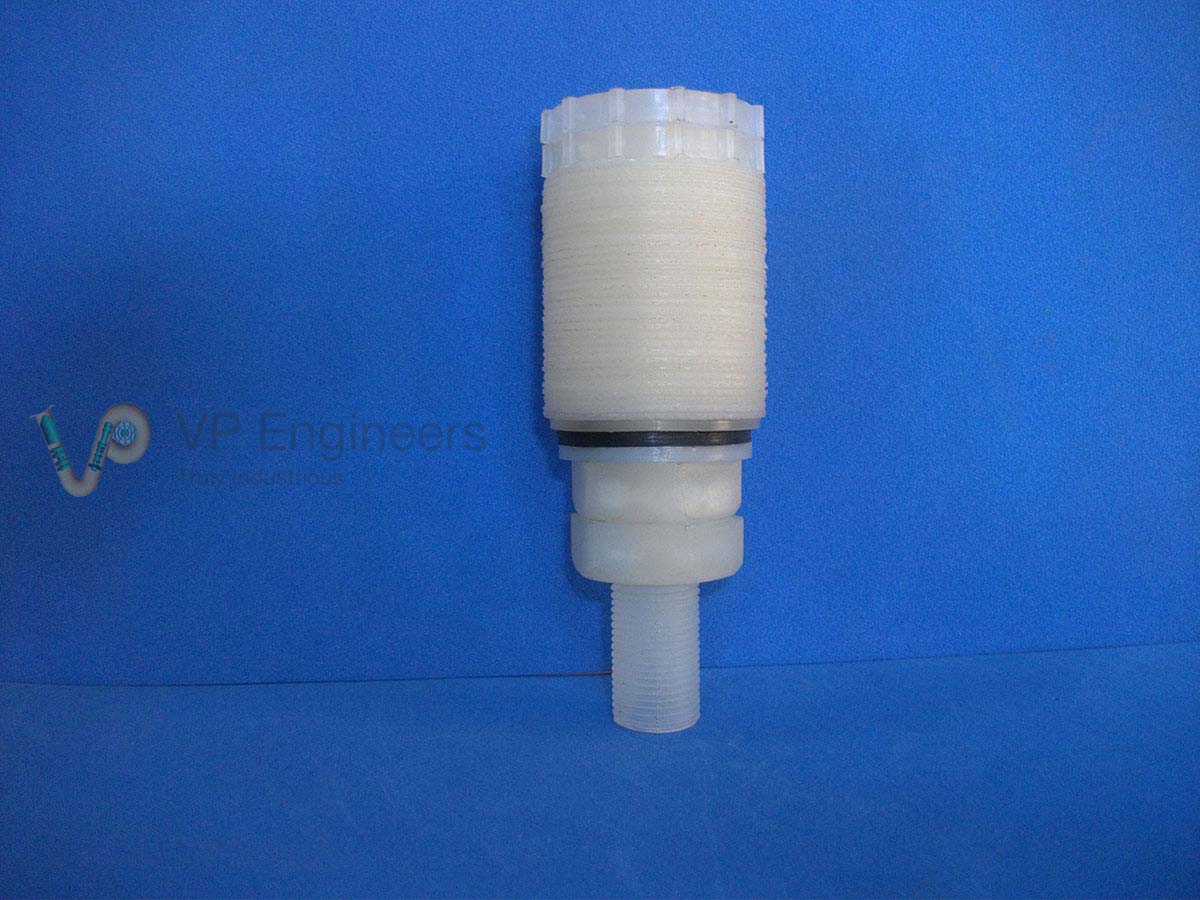

Code No 1

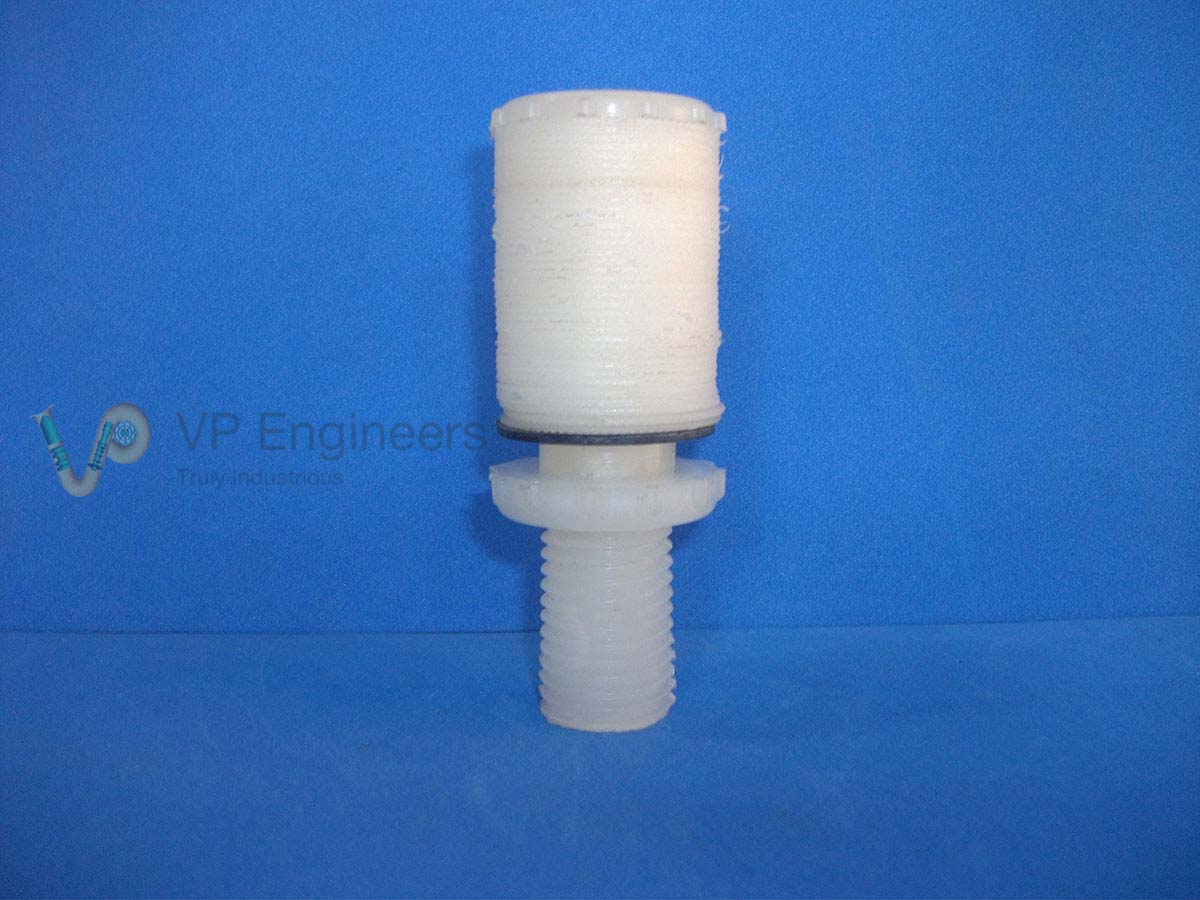

Code No 1C

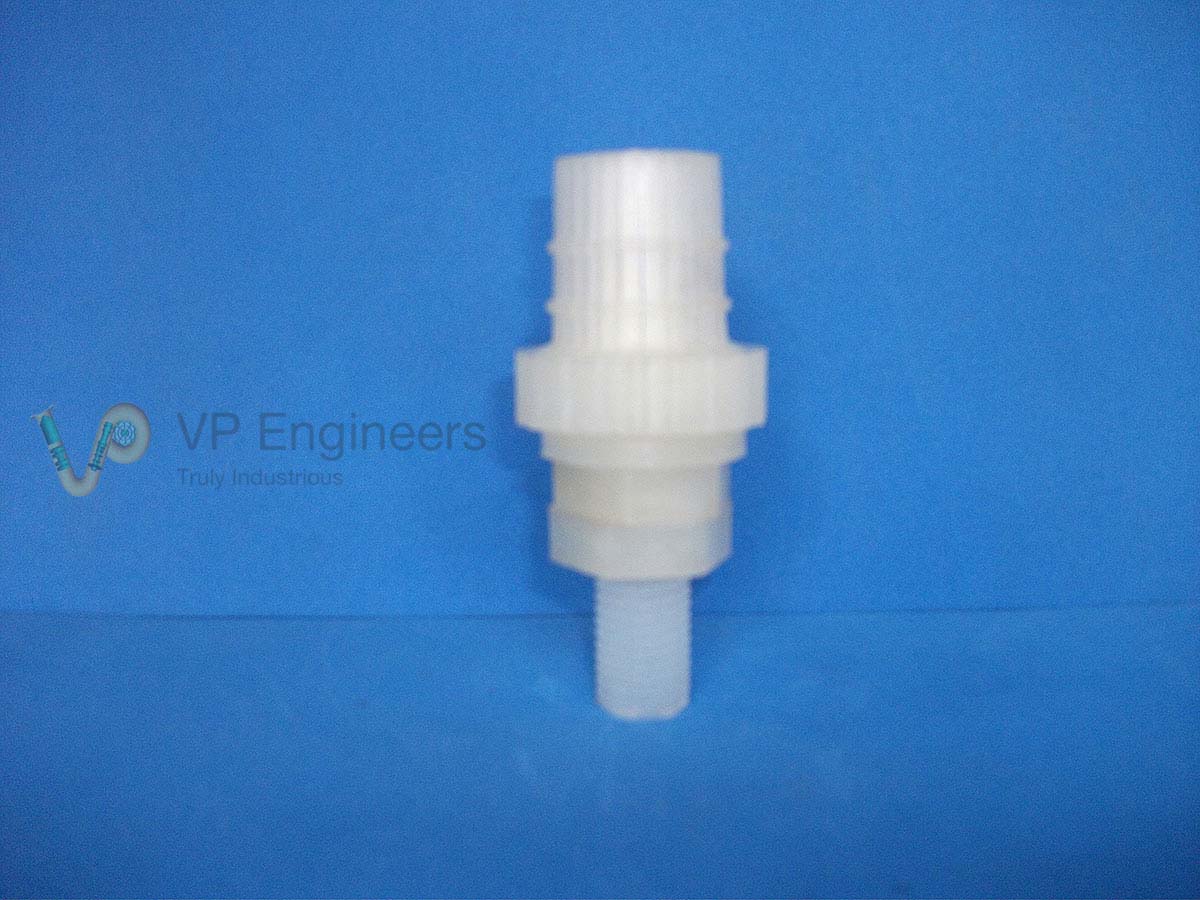

Code No 2

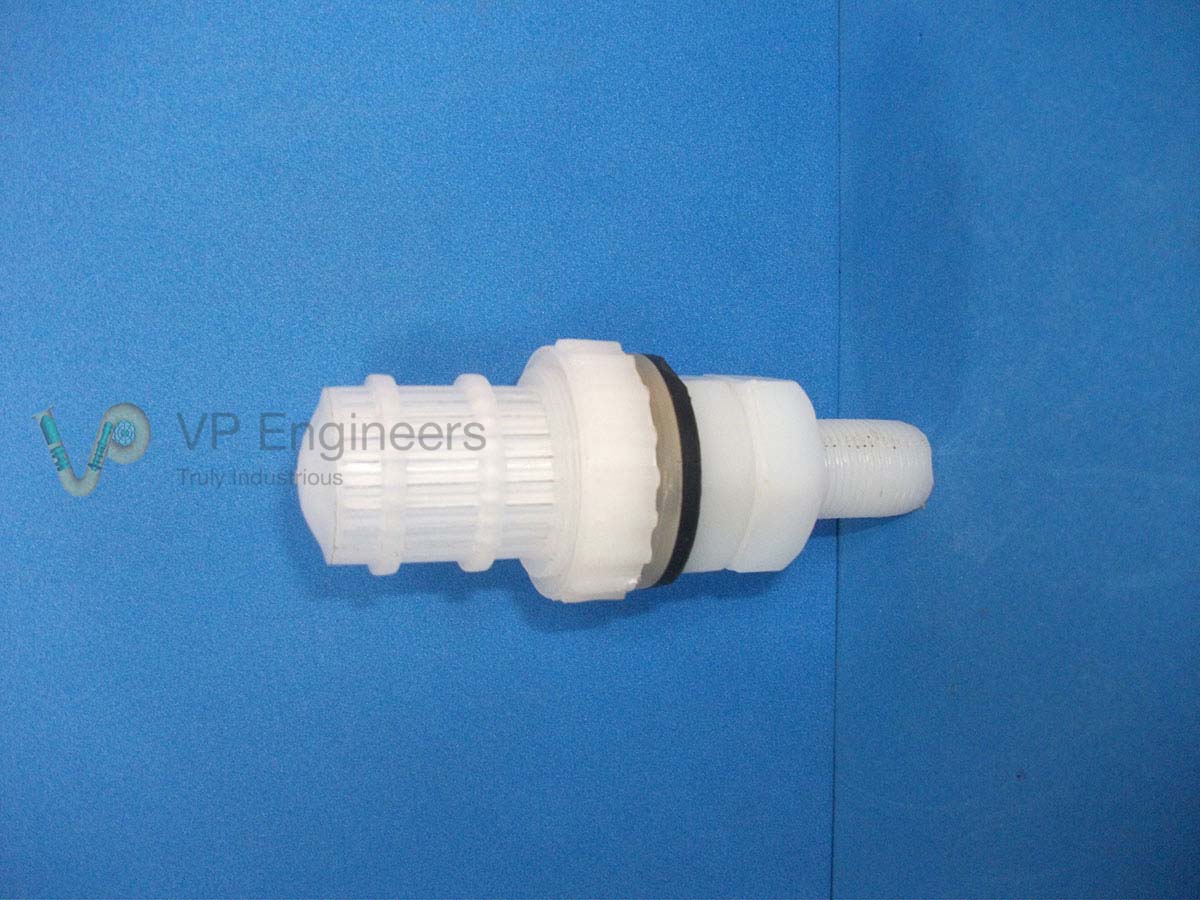

Code No 2M

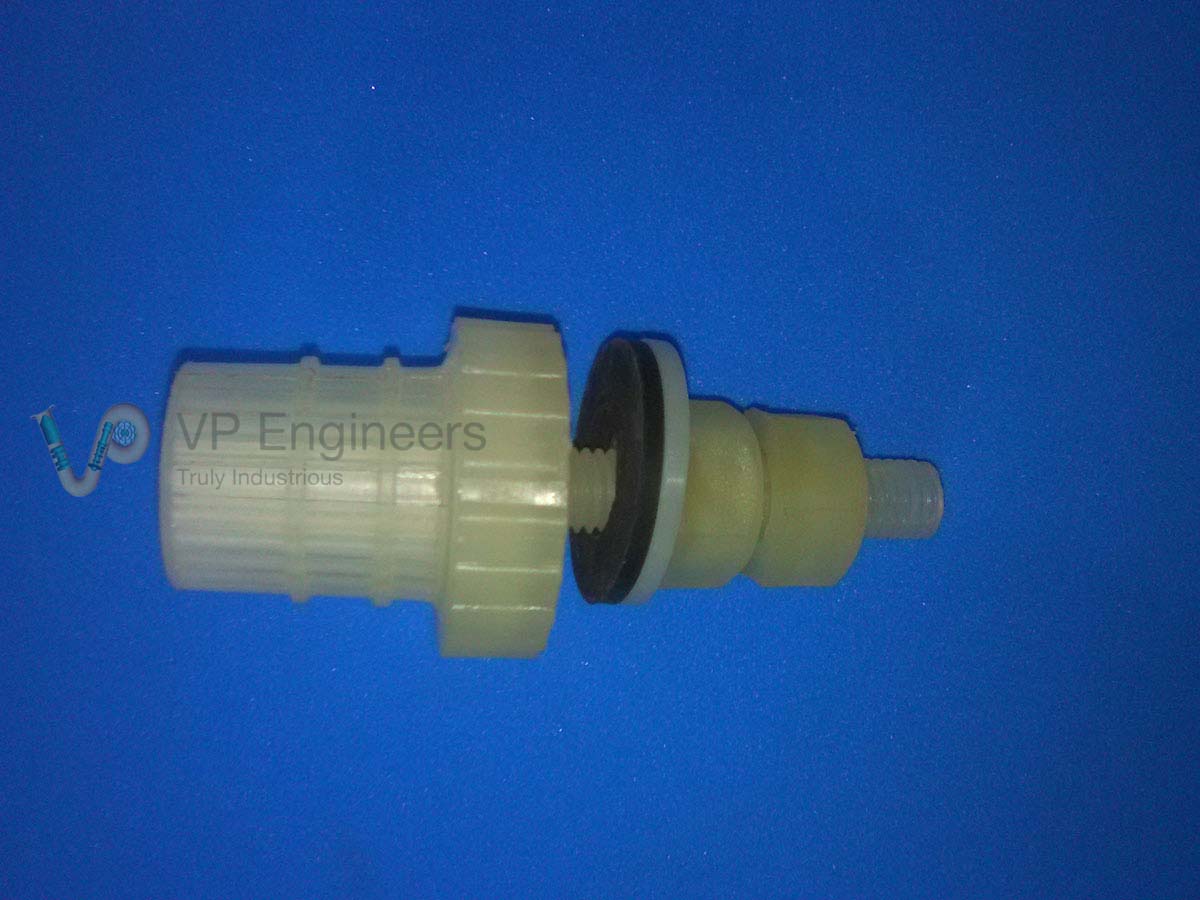

Code No 2N

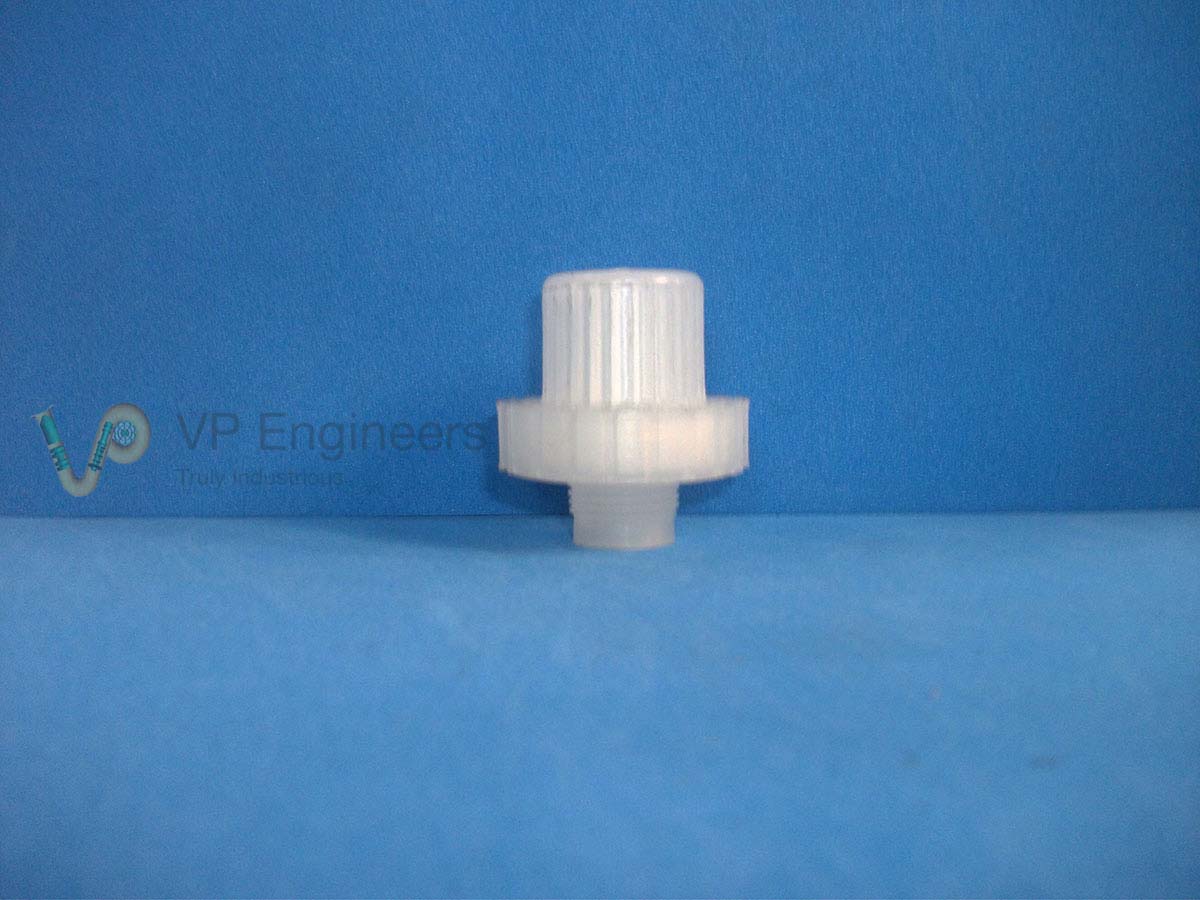

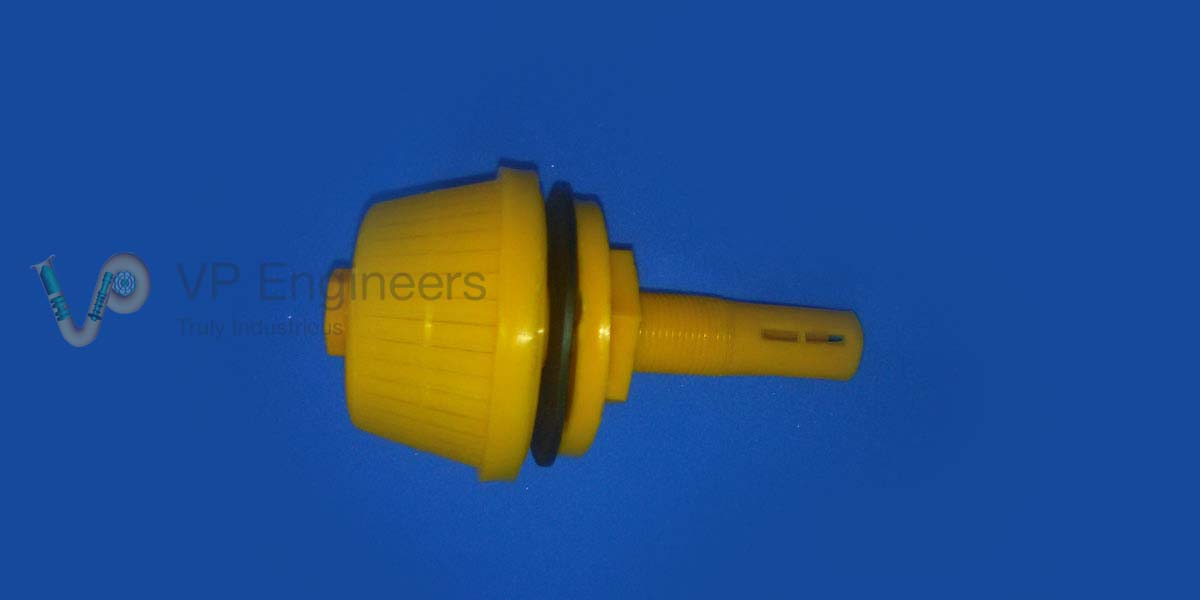

Code No 3

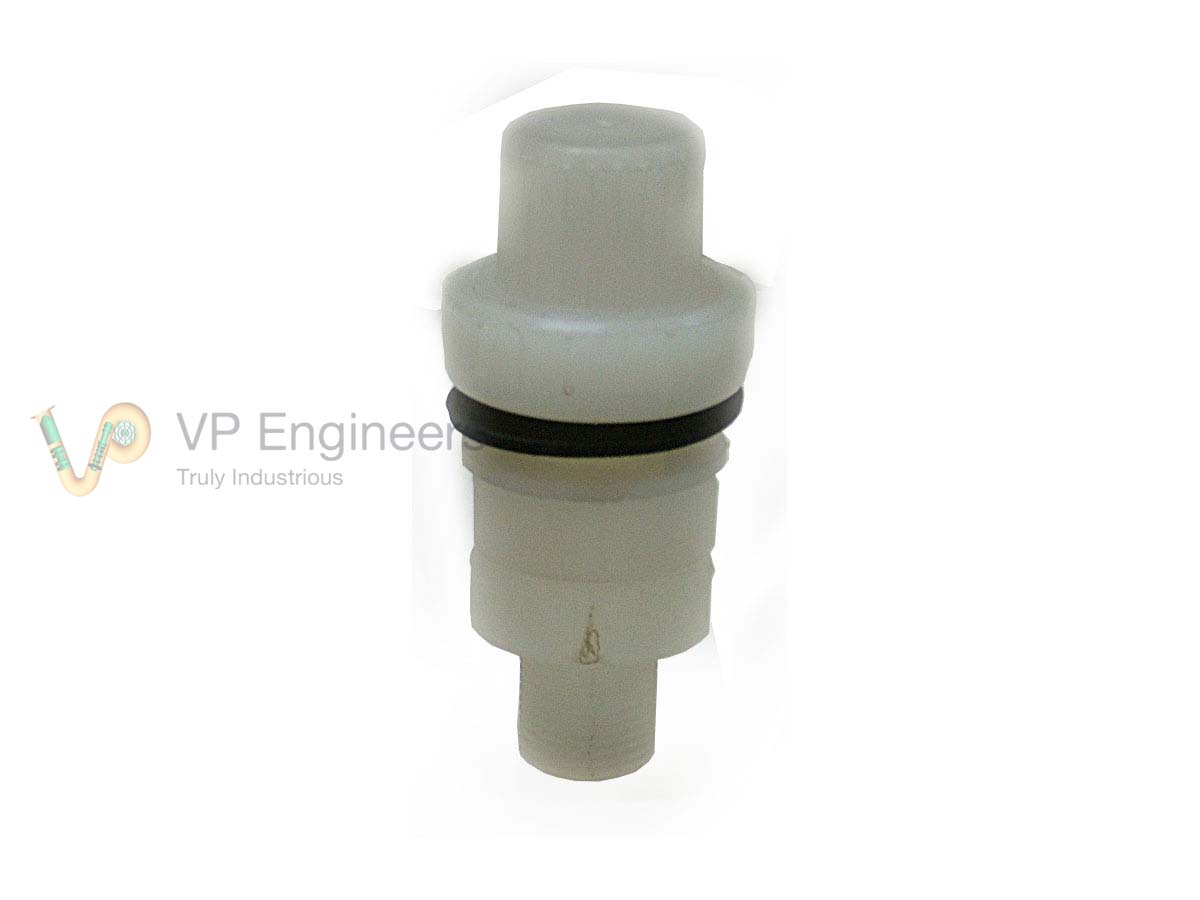

Code No 3A

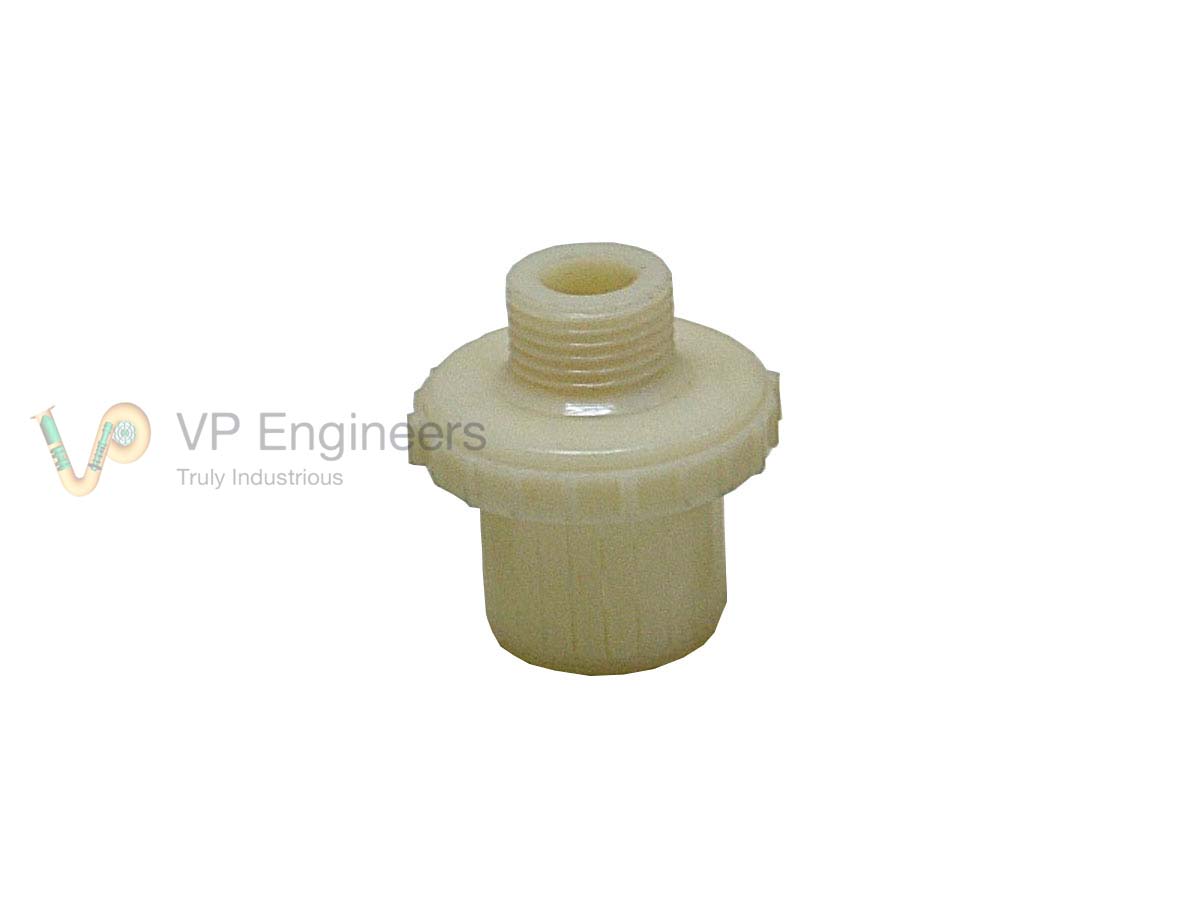

Code No 3ABS

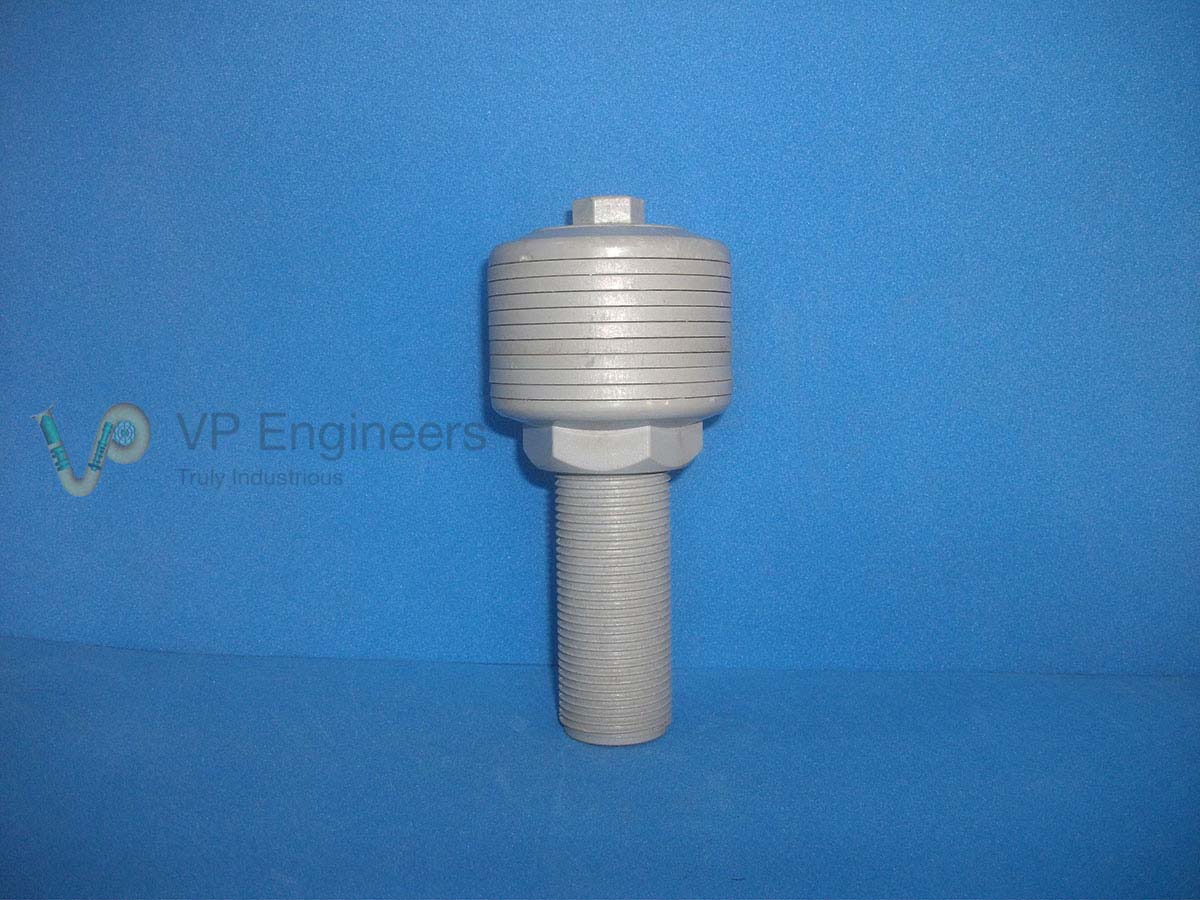

Code No 4

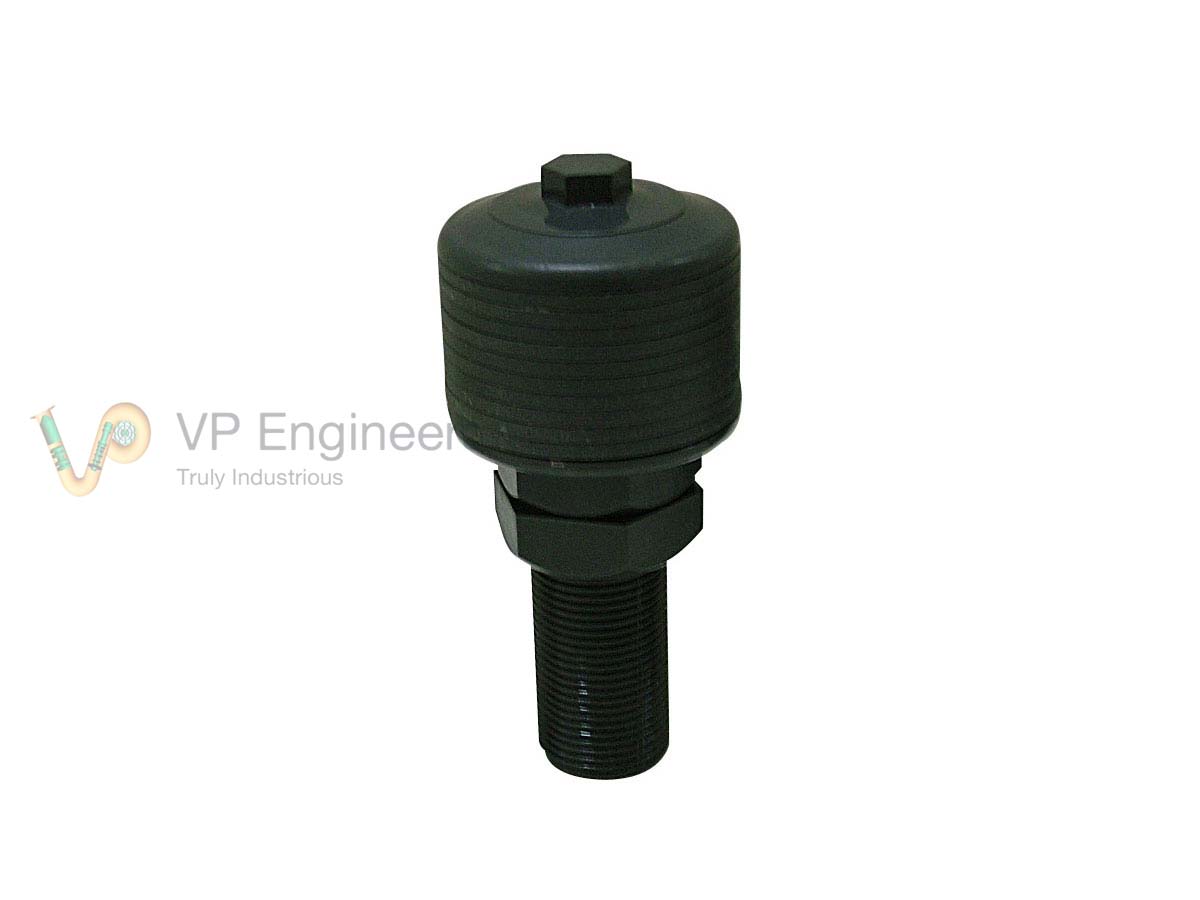

Code No 4B

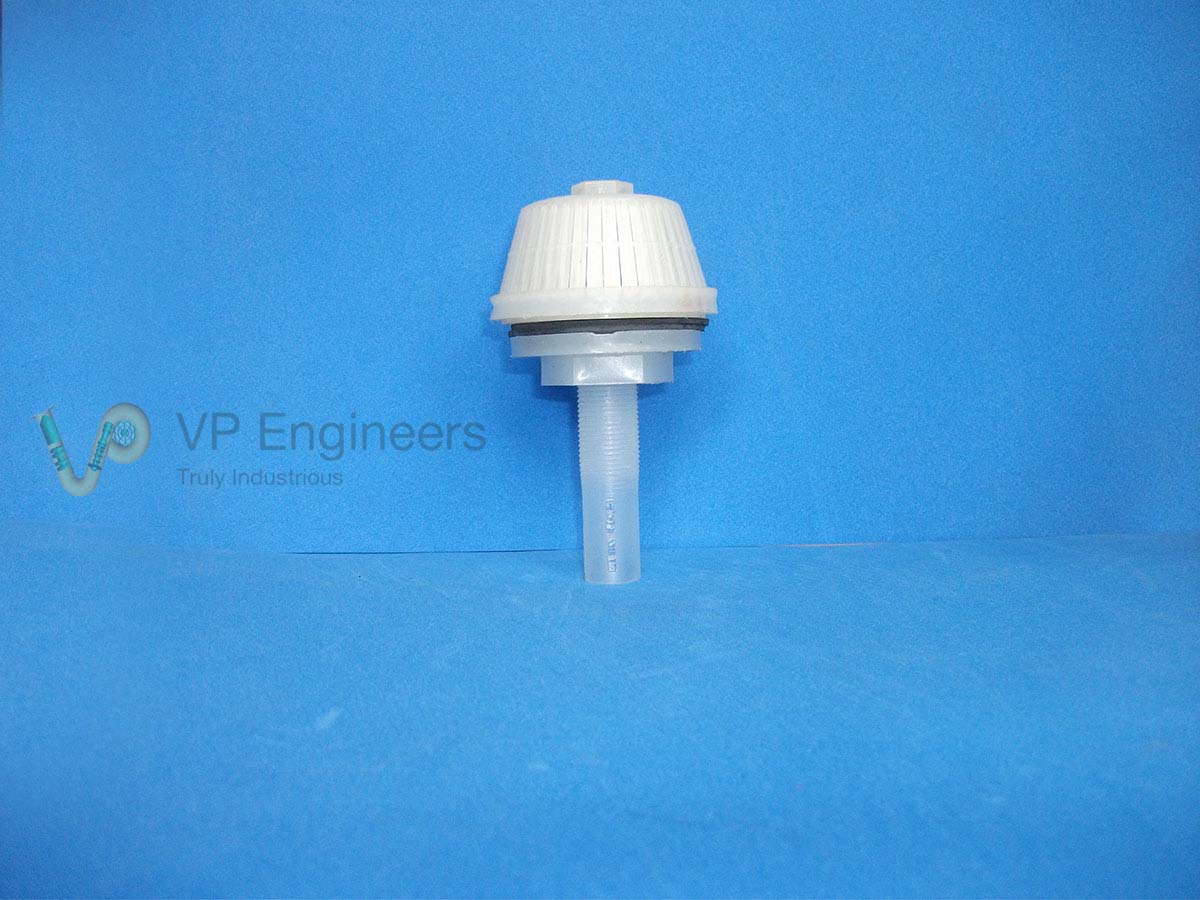

Code No 5 3in4 Inch

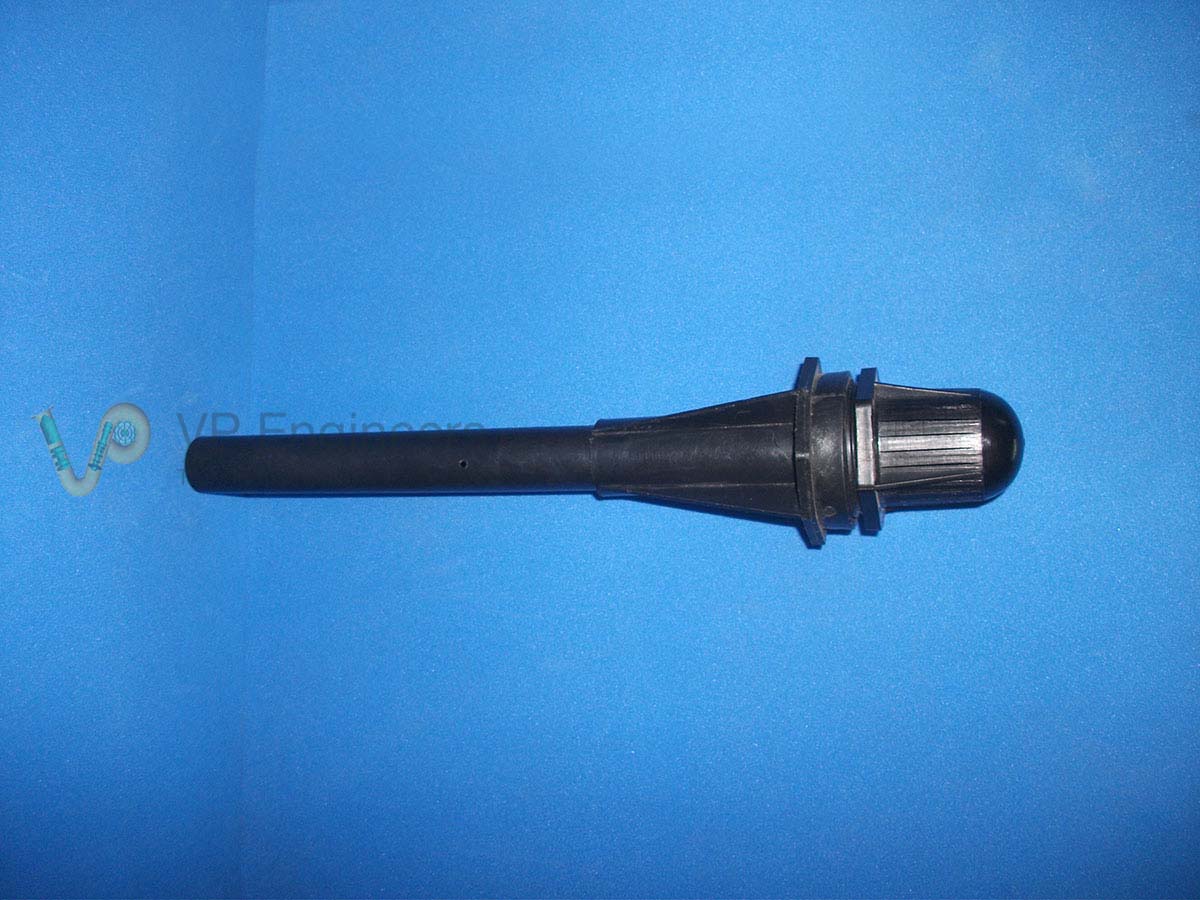

Code No 5 GFN

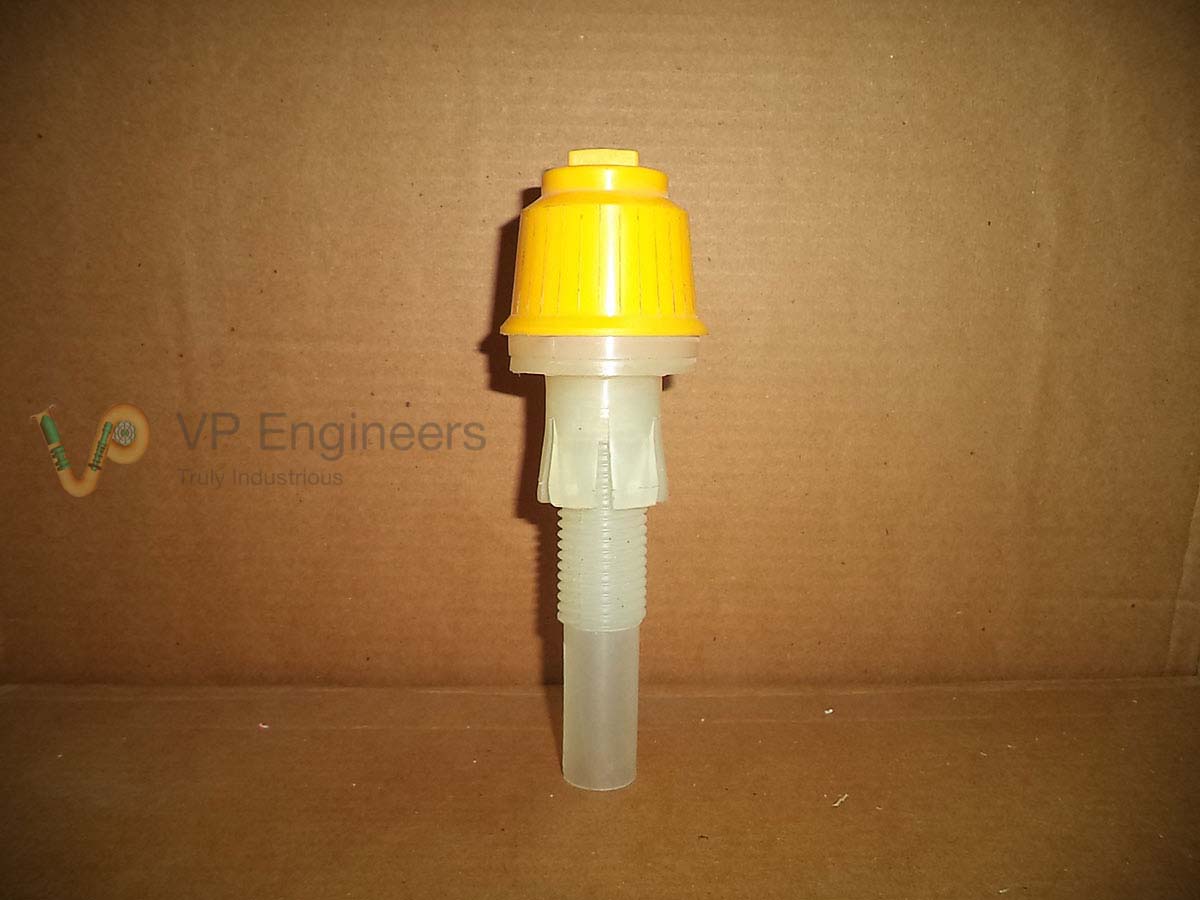

Code No 5 PSF

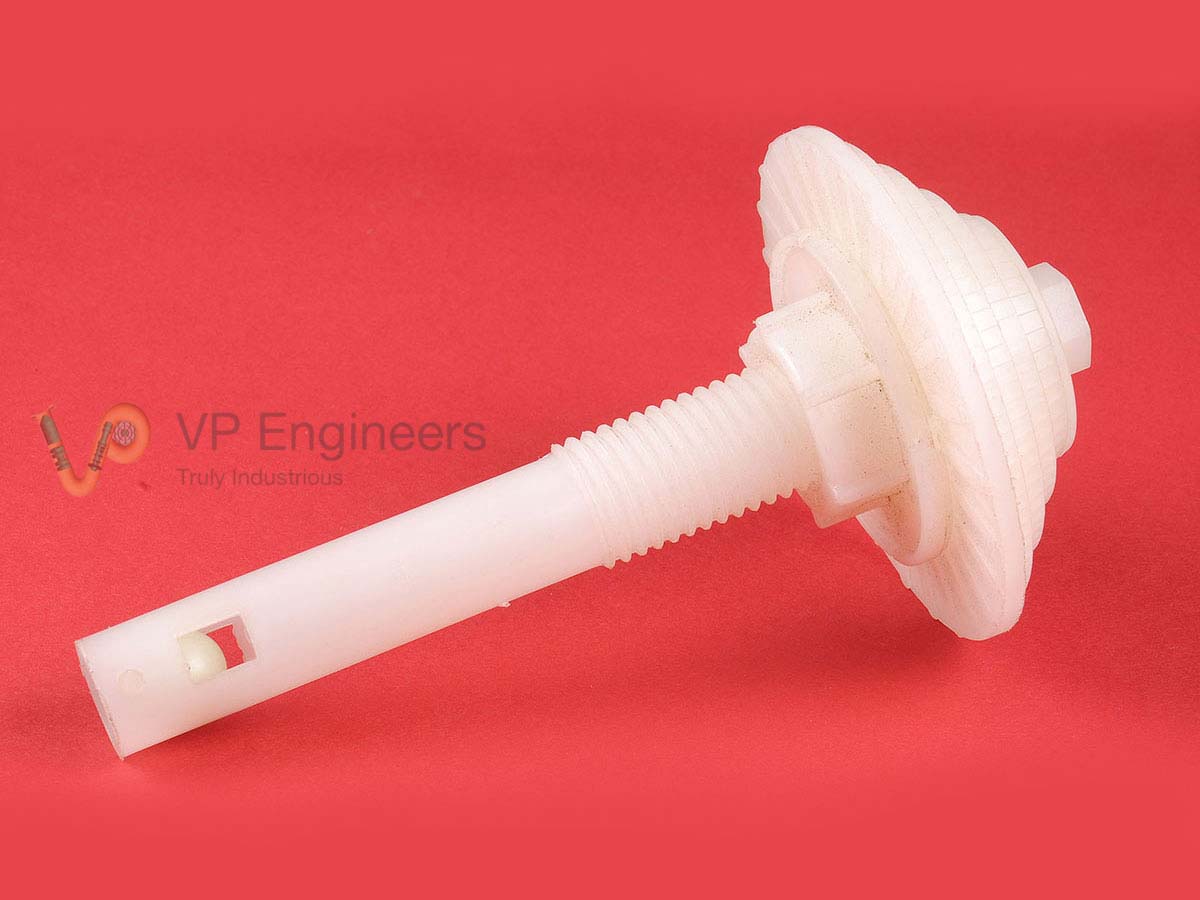

Code No 14

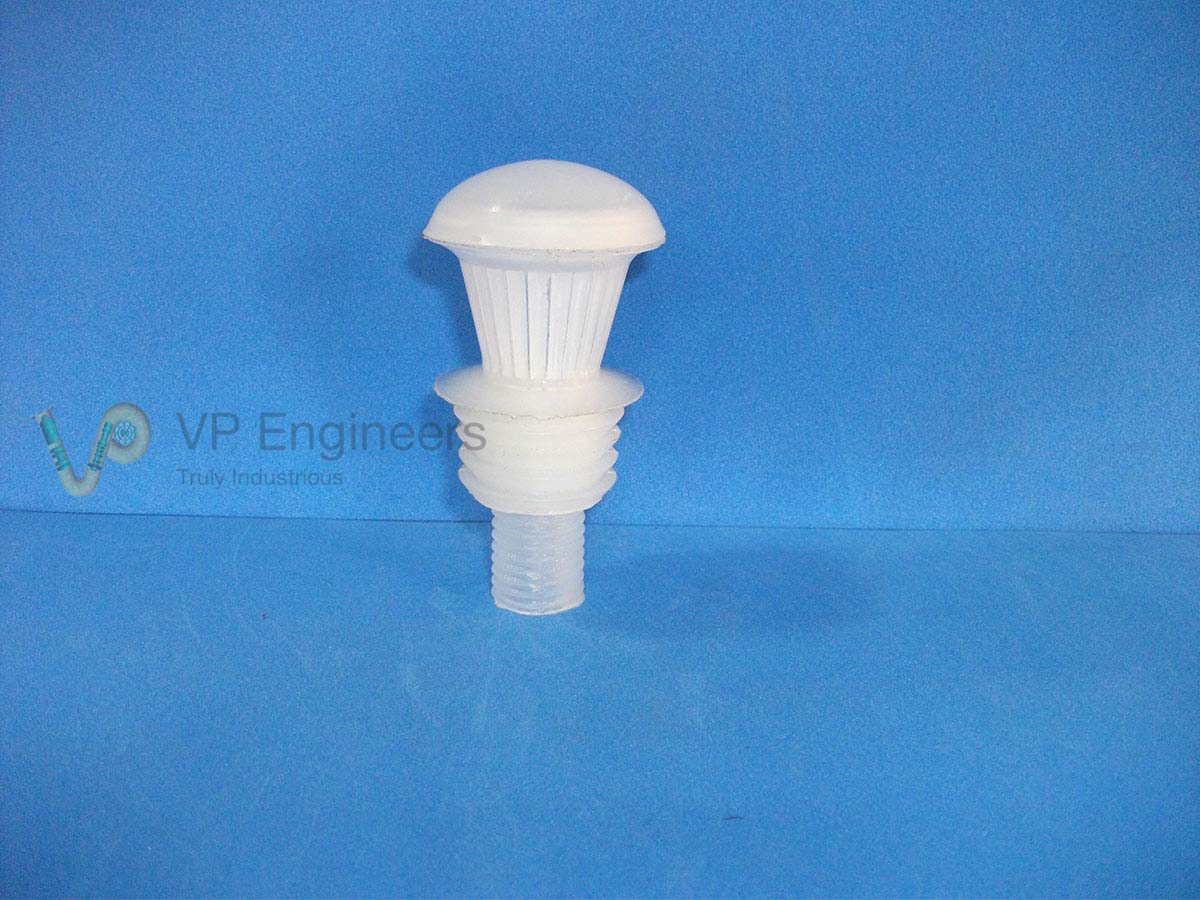

Code No 19A

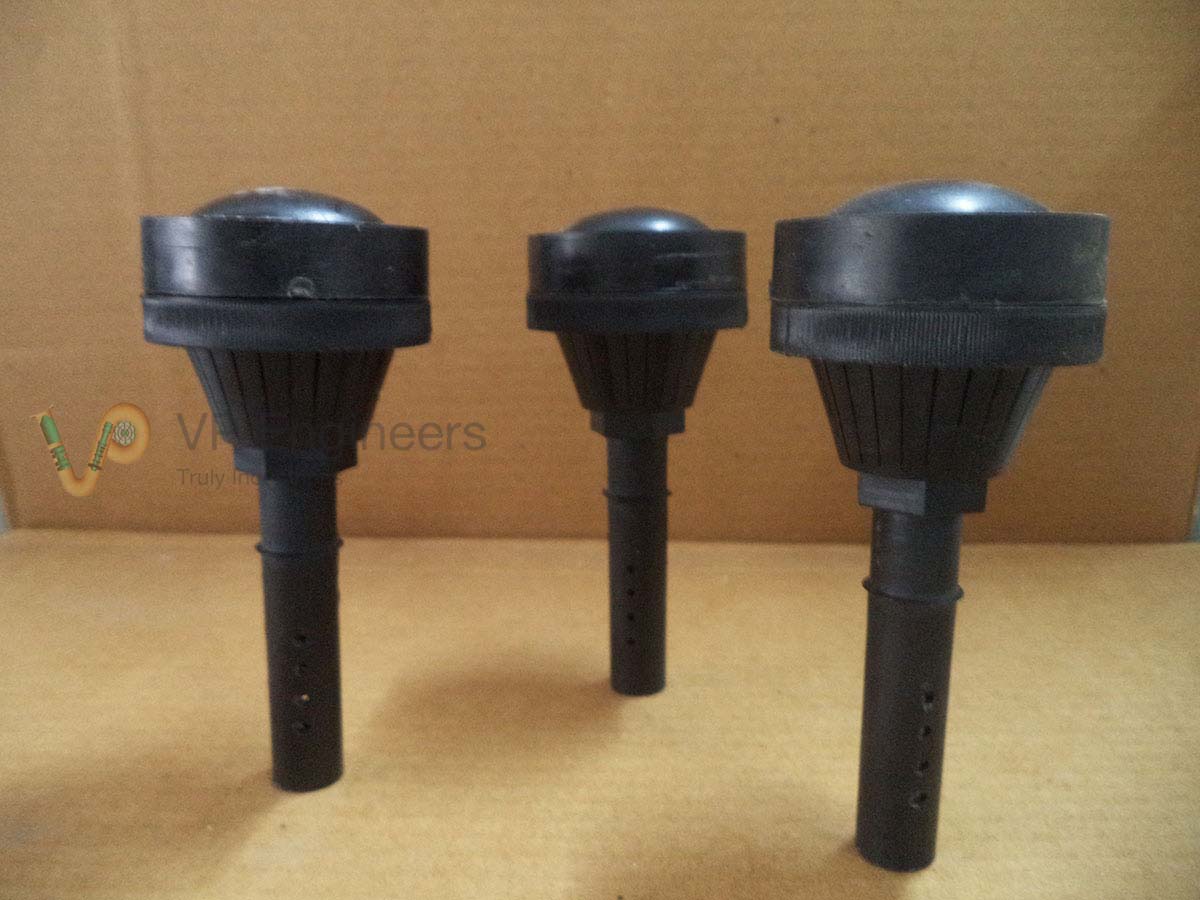

Code No 19C

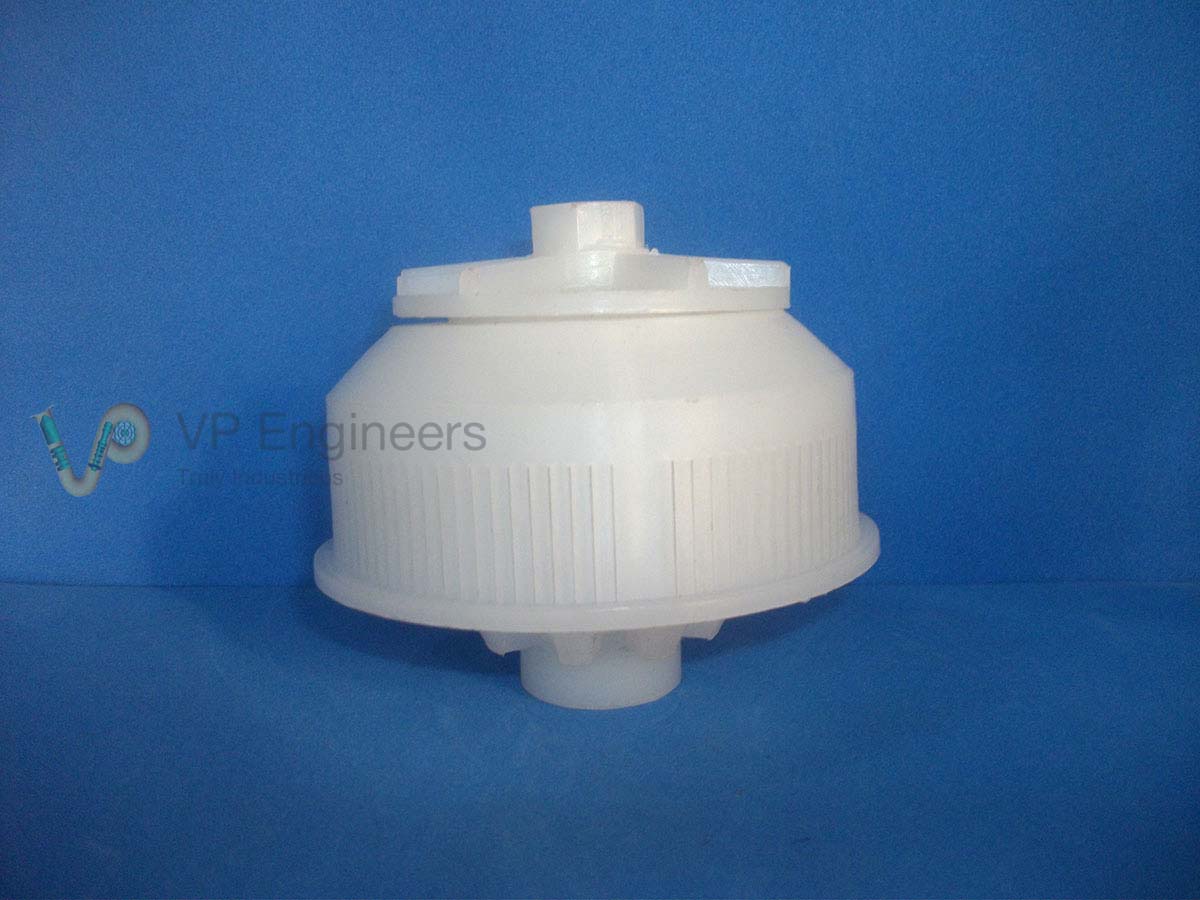

Code No 22

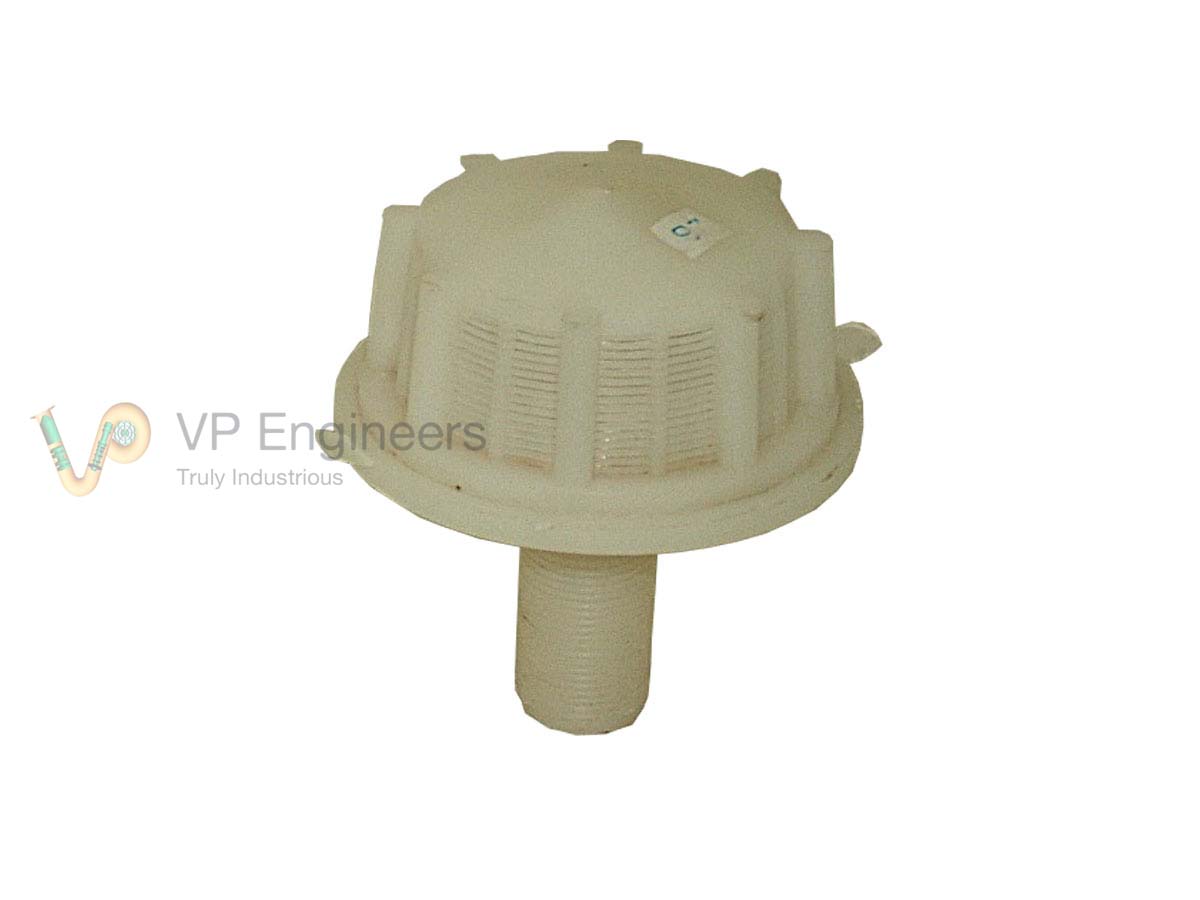

Code No 28

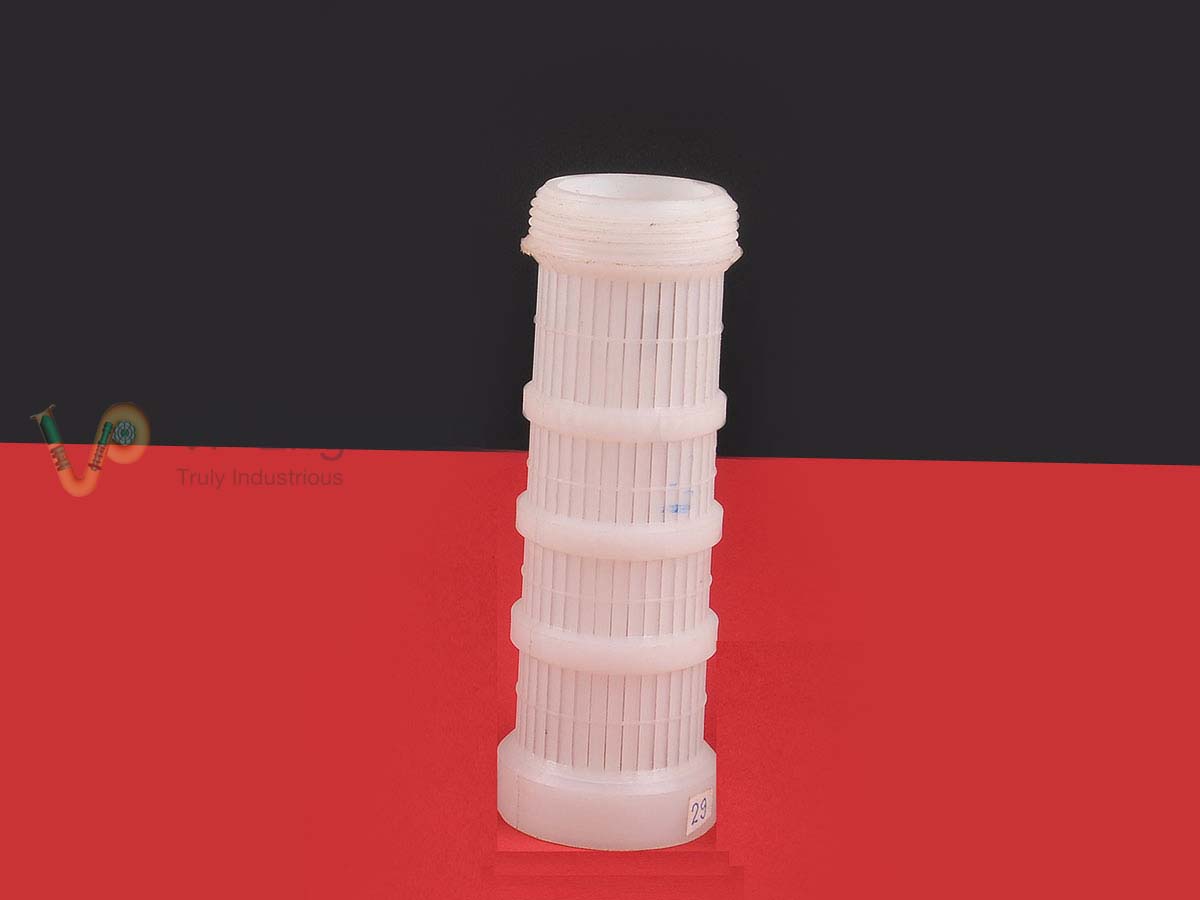

Code No 29

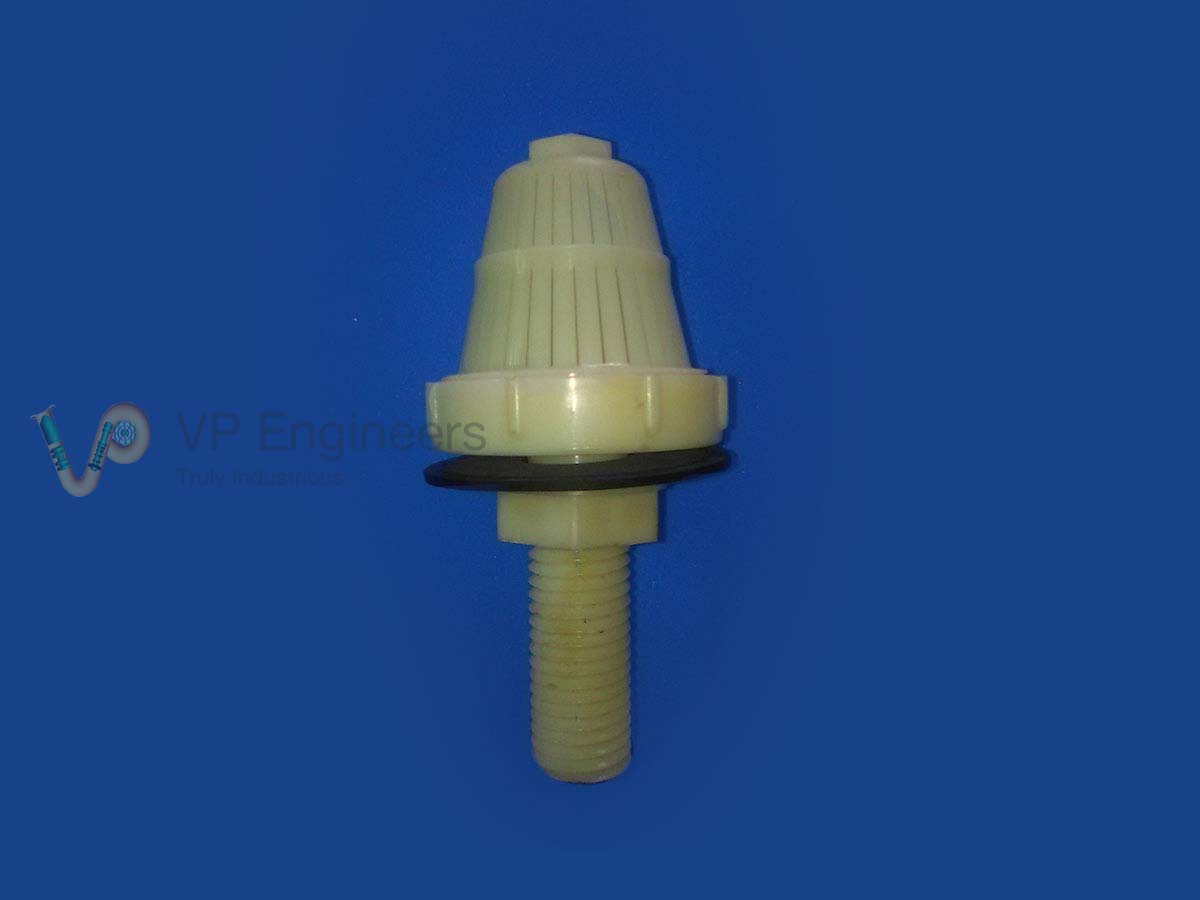

Code No 31

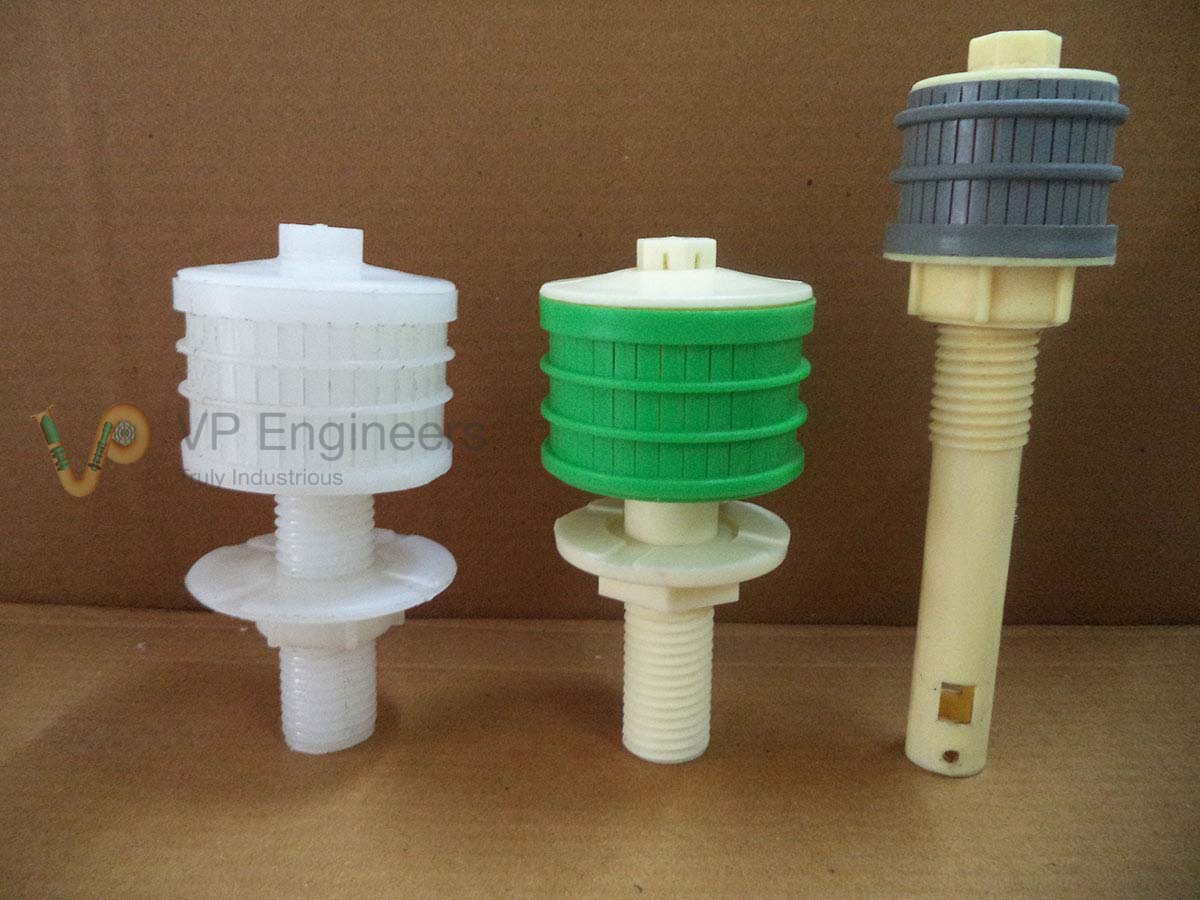

Code No 33B

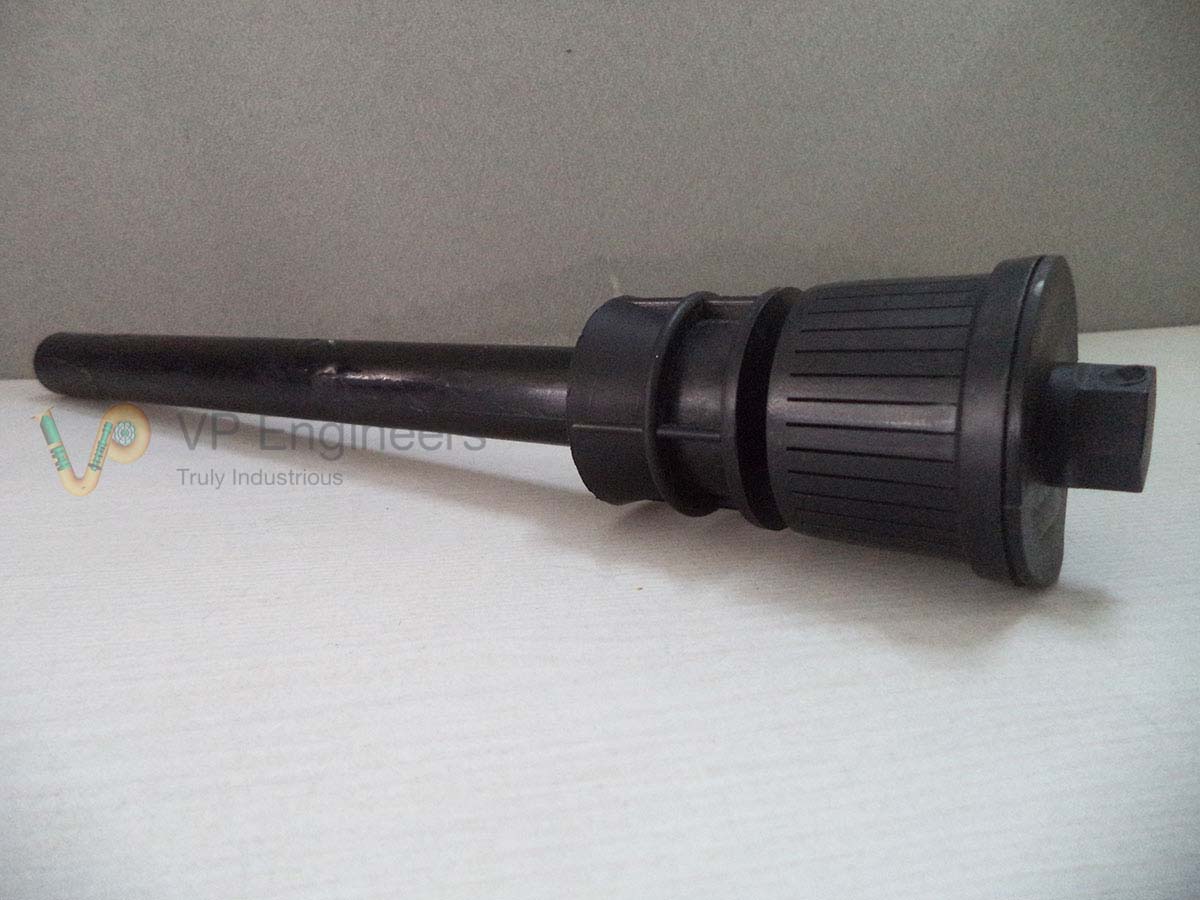

Code No 43
